Drive Plate With Overload Protection, Removing And Installing: Removing

-- Remove the A/C compressor. Refer to A/C COMPRESSOR, REMOVING AND INSTALLING, 8-CYLINDER FSI/TFSI ENGINE .

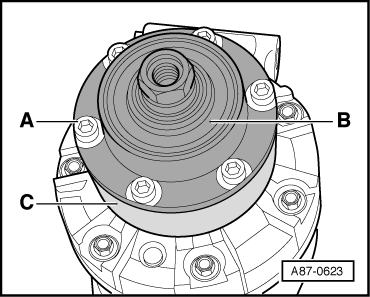

-- Counterhold the drive plate -C- with a commercially available strap wrench (with webbed band) to remove the bolts -A-.

GWWA87-0623Courtesy of AUDI OF AMERICA, LLC
