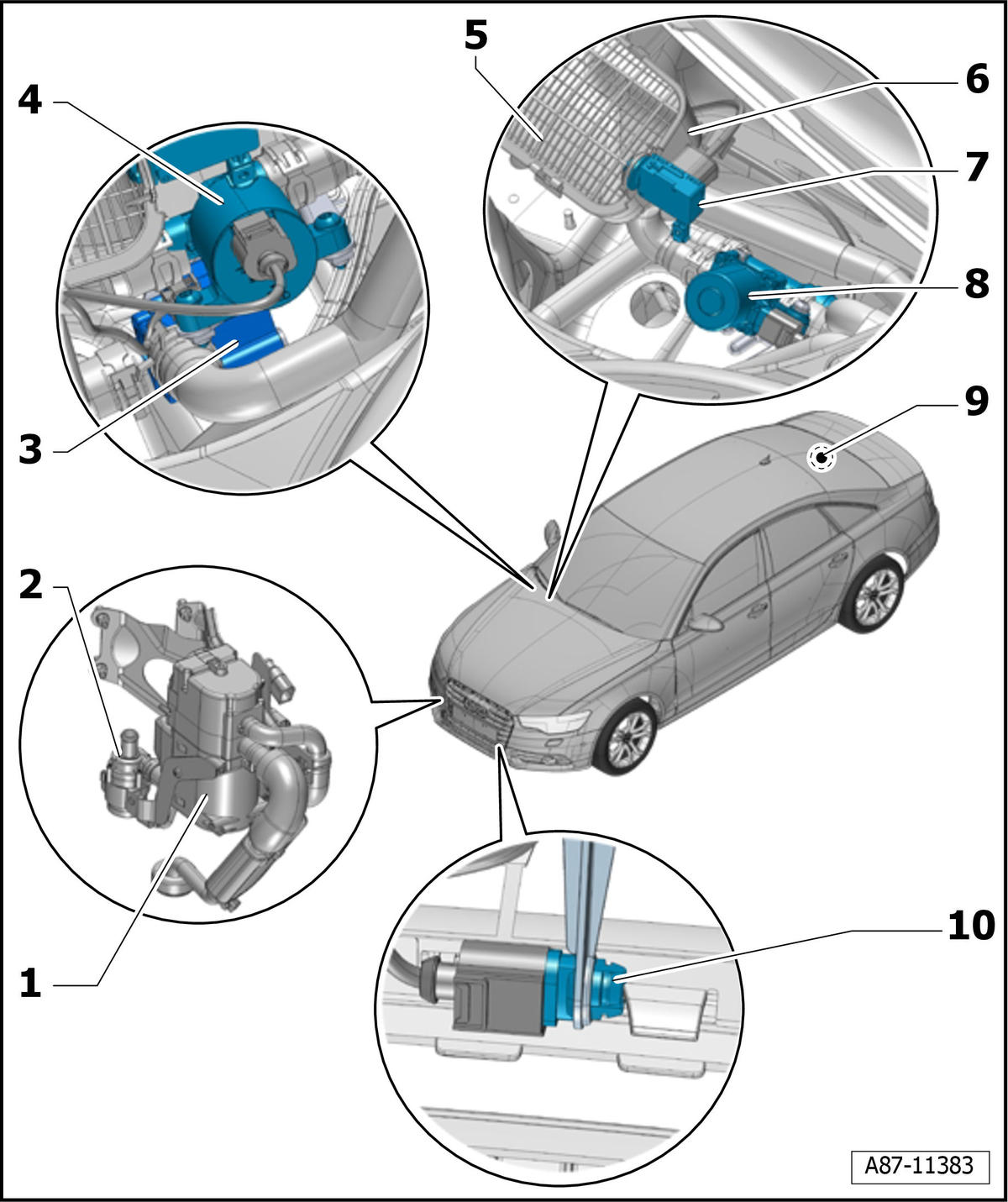

Components Outside Of Passenger Compartment, Component Group 1

Courtesy of AUDI OF AMERICA, LLC

1. Parking Heater with the Auxiliary Heater Control Module -J364-
2. Recirculation Pump -V55-
   • For vehicles with a parking heater
3. Coolant Recirculation Pump -V50-
   • Depending on the vehicle equipment level
4. Coolant Shut-Off Valve -N82-
   • Depending on the vehicle equipment level
5. Intake Grille
   • For the fresh air intake
   • Market-specific: for countries with high dust levels (for example China), a filter is installed instead of the grille for fresh air intake, which prevents dust and sand from entering the fresh air blower.
6. Fresh Air Intake
   • Removing and Installing. Refer to FRESH AIR INTAKE, REMOVING AND INSTALLING .
7. Air Quality Sensor -G238- with Humidity Sensor In Fresh Air Intake Duct -G657-
   • To check, use the Vehicle Diagnostic Tester in the "Guided Fault Finding" function an. Refer to the Appropriate Wiring Diagram.
   • Removing and Installing. Refer to Air Quality Sensor -G238- WITH Humidity Sensor In Fresh Air Intake Duct -G657-, REMOVING AND INSTALLING .
8. Heater Coolant Shut-Off Valve -N279-
   • Depending on the vehicle equipment level
9. Rear Window Defogger -Z1-
   • Component location overview. Refer to COMPONENT LOCATION OVERVIEW - REAR COMPONENTS OUTSIDE OF PASSENGER COMPARTMENT .
10. Outside Air Temperature Sensor -G17-
    • To check, use the Vehicle Diagnostic Tester in the "Guided Fault Finding" function an. Refer to the Appropriate Wiring Diagram.
    • Removing and installing. Refer to Outside Air Temperature Sensor -G17-, REMOVING AND INSTALLING .
