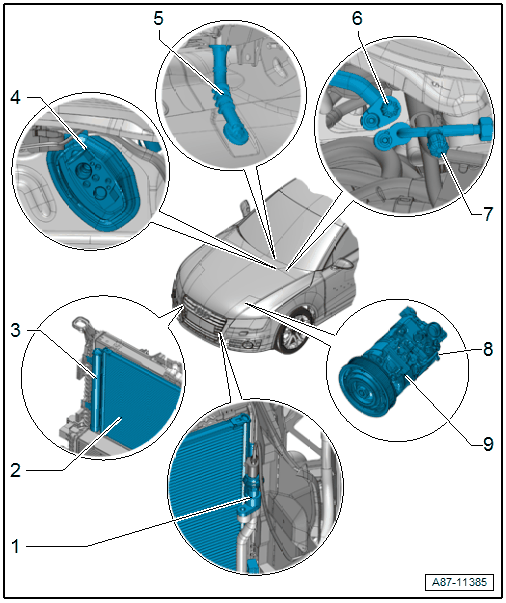

Components Outside Of Passenger Compartment, Component Group 2

Courtesy of AUDI OF AMERICA, LLC

Refrigerant Pressure Sensor (A/C Pressure/Temperature Sensor -G395- / High Pressure Sensor -G65-)
- To check, use the Vehicle Diagnostic Tester in the "Guided Fault Finding" function an. Refer to the Appropriate Wiring Diagram.
- Overview. Refer to OVERVIEW - CONDENSER, VEHICLES WITH HIGH-VOLTAGE SYSTEM .
  NOTE:
  There are different designations, depending on the vehicle. The sensor is designated as High Pressure Sensor -G65- on the Audi A6 e-tron. It exchanges the data with the Thermal Management Control Module -J1024- on this vehicle. On all other vehicles (except for the Audi A6 e-tron), the sensor is designated as the A/C Pressure/Temperature Sensor -G395-. For these vehicles, it exchanges data with the Climatronic Control Module -J255- control head. Refer to the Appropriate Wiring Diagram.
Condenser
- With integrated receiver/dryer
- Overview. Refer to OVERVIEW - CONDENSER .
Receiver/Dryer
- Overview. Refer to OVERVIEW - CONDENSER .
Expansion Valve
- Overview. Refer to OVERVIEW - REFRIGERANT LINES, EXPANSION VALVE, INNER HEAT EXCHANGER .
- There are different versions depending on the refrigerant (R134a or R1234yf).
Condensation Water Drain
- Checking. Refer to CONDENSATION WATER DRAIN, CHECKING .
- Removing and installing. Refer to CONDENSATION WATER DRAIN, REMOVING AND INSTALLING .
Low Pressure Side Service Connection
- For measuring, emptying and filling
  CAUTION:
  Danger due to refrigerant coming out under pressure when there is a defective valve in the refrigerant circuit.

  Danger of frost bite to skin and other parts of the body.
  - Only remove when the refrigerant circuit is empty. The connection does not have a valve. Refer to VALVE, REMOVING AND INSTALLING AT SERVICE CONNECTION ON LOW AND HIGH PRESSURE SIDE ..
- There are different versions depending on the refrigerant (R134a or R1234yf). Refer to SERVICE CONNECTION DIFFERENCES, DEPENDING ON REFRIGERANT (R134A OR R1234YF) or the Parts information.
- Overview. Refer to OVERVIEW - REFRIGERANT LINES .
High Pressure Side Service Connection
- For measuring, emptying and filling
  CAUTION:
  Danger due to refrigerant coming out under pressure when there is a defective valve in the refrigerant circuit.

  Danger of frost bite to skin and other parts of the body.
  - Only remove when the refrigerant circuit is empty. The connection does not have a valve. Refer to VALVE, REMOVING AND INSTALLING AT SERVICE CONNECTION ON LOW AND HIGH PRESSURE SIDE .
- There are different versions depending on the refrigerant (R134a or R1234yf). Refer to SERVICE CONNECTION DIFFERENCES, DEPENDING ON REFRIGERANT (R134A OR R1234YF) or the Parts information.
- Overview. Refer to OVERVIEW - REFRIGERANT LINES .
A/C Compressor Regulator Valve -N280-
- To check, use the Vehicle Diagnostic Tester in the "Guided Fault Finding" function an. Refer to the Appropriate Wiring Diagram.
A/C Compressor
- Overview. Refer to OVERVIEW - A/C COMPRESSOR POWER UNIT .
- There are different versions depending on the refrigerant (R134a or R1234yf).
