Overview - Rear Display And Control Head

General Information. Refer to CONTROL HEAD .

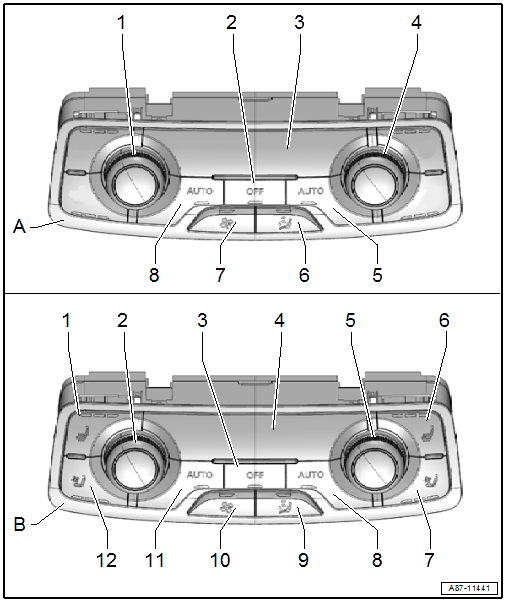

Fig 1: Rear Display And Control Head Exploded View

Courtesy of AUDI OF AMERICA, LLC

A - Rear A/C Display Control Head -E265- for Vehicles without Seat Heating/Seat Ventilation
1 - Driver Side Temperature Preset Regulator
2 - OFF -Button for the Hearing and the Climate Controls
- Illuminated LED indicates the "off" function is selected.
3 - Display
4 - Front Passenger Side Temperature Preset Regulator
5 - Right Auto Button for Automatic A/C System Control
- Illuminated LED indicates the "Automatic control" function is selected
6 - Air Distribution Button
- The selected "air distribution" function is shown on the display
7 - Rear Fresh Air Blower -V80- Button
- For setting the blower speed
8 - Left Auto Button for Automatic A/C System Control
- Illuminated LED indicates the "Automatic control" function is selected
B - Rear A/C Display Control Head -E265- for Vehicles with Seat Heating/Seat Ventilation
1 - Left Seat Heating Button
- Illuminated LED indicates the level selected.
2 - Driver Side Temperature Preset Regulator
3 - OFF -Button for the Hearing and the Climate Controls
- Illuminated LED indicates the "off" function is selected.
4 - Display
5 - Front Passenger Side Temperature Preset regulator
6 - Right Seat Heating Button
- Illuminated LED indicates the level selected.
7 - Right Seat Ventilation Button
- Illuminated LED indicates the level selected.
8 - Right Auto Button for Automatic A/C System Control
- Illuminated LED indicates the "Automatic control" function is selected
9 - Air Distribution Button
- The selected "air distribution" function is shown on the display
10 - Rear Fresh Air Blower -V80- Button
- for setting the blower speed
11 - Left Auto Button for Automatic A/C System Control
- Illuminated LED indicates the "Automatic control" function is selected
12 -Left Seat Ventilation Button
- Illuminated LED indicates the level selected.
