Left/Right Rear Level Control System Sensor -G76- / -G77-, Removing And Installing: Removing

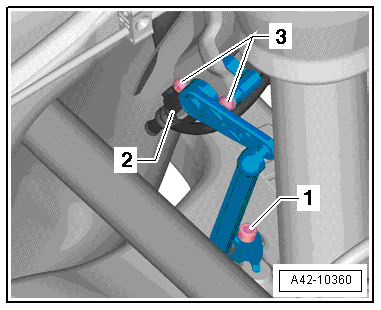

-- Remove wheel.

-- Disconnect the connector -2-.

GWWA42-10360Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -1- from the coupling rod.

-- Remove the bolts -3- and the vehicle level sensor.
