Component Location Overview - Navigation System, Japan, From My 2015

Courtesy of AUDI OF AMERICA, LLC

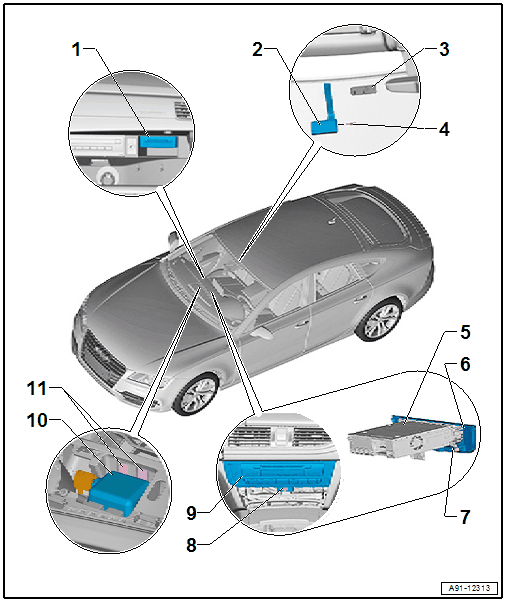

1. Chip Card Reader Control Module -J676-
   • Connector Assignment. Refer to Chip Card Reader Control Module -J676- CONNECTOR ASSIGNMENT, FROM MY 2015 .
   • Removing and Installing. Refer to CHIP CARD READER CONTROL MODULE, REMOVING AND INSTALLING .
2. Traffic Data Antenna -R173-
   • Removing and Installing. Refer to TRAFFIC DATA ANTENNA, REMOVING AND INSTALLING .
3. Bracket
   • Glued to the windshield
4. Safety piece
5. Information Electronics Control Module 1 -J794-
6. Trim
7. Bolt
   • Quantity: 4
   • 1 Nm
8. Bolt
   • 3 Nm
9. Information Electronics Control Module 1 -J794-
   • Connector Assignment, Navigation plus 7UG. Refer to the Appropriate Wiring Diagram.
   • Removing and Installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
10. Close Range Communication Antenna -R269-
    • Removing and Installing. Refer to CLOSE RANGE COMMUNICATION ANTENNA, REMOVING AND INSTALLING .
11. Catch
