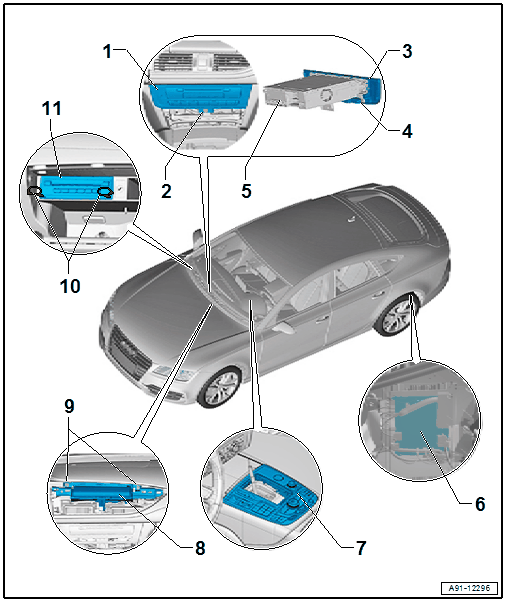

Component Location Overview - Infotainment System, From My 2015

Courtesy of AUDI OF AMERICA, LLC

1. Information Electronics Control Module 1 -J794-
   • Connector Assignment. Refer to the Appropriate Wiring Diagram.
   • Removing and Installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
2. Screw
   • 3 Nm
3. Trim
4. Screw
   • 1 Nm
   • Quantity: 4
5. Information Electronics Control Module 1 -J794-
6. TV Tuner -R78-
7. Multimedia System Control Head -E380-
   • Connector assignment Multimedia System Control Head -E380- CONNECTOR ASSIGNMENT .
   • Removing and installing. Refer to Multimedia System Control Head -E380-, REMOVING AND INSTALLING, QW1 .
   • With Touchpad Control Module -J929-
   • Replace with Touchpad Control Module -J929-. Refer to Touchpad Control Module -J929-, REMOVING AND INSTALLING, UJ1 .
8. Front Information Display Control Head -J685-
   • Connector assignment Front Information Display Control Head -J685- CONNECTOR ASSIGNMENT .
   • 6.5 inch display with kinematics, removing and installing. Refer to 6.5 INCH DISPLAY WITH KINEMATICS, REMOVING AND INSTALLING .
   • 8 inch display with kinematics, removing and installing. Refer to 8 INCH DISPLAY WITH KINEMATICS, REMOVING AND INSTALLING .
   • Front and rear cover, removing and installing. Refer to FRONT DISPLAY FRONT AND REAR COVER, REMOVING AND INSTALLING .
   • Display service position. Refer to 8-INCH FRONT DISPLAY SERVICE POSITION .
9. Screw
   • 3 Nm
   • Quantity: 2
10. Radio Removal Tool :T10057
11. DVD Changer -R161-
    • Connector assignment DVD Changer -R161- CONNECTOR ASSIGNMENT, FROM MY 2015 .
    • Removing and installing. Refer to DVD CHANGER, REMOVING AND INSTALLING .
