Component Location Overview - Infotainment System, Through My 2014

Courtesy of AUDI OF AMERICA, LLC

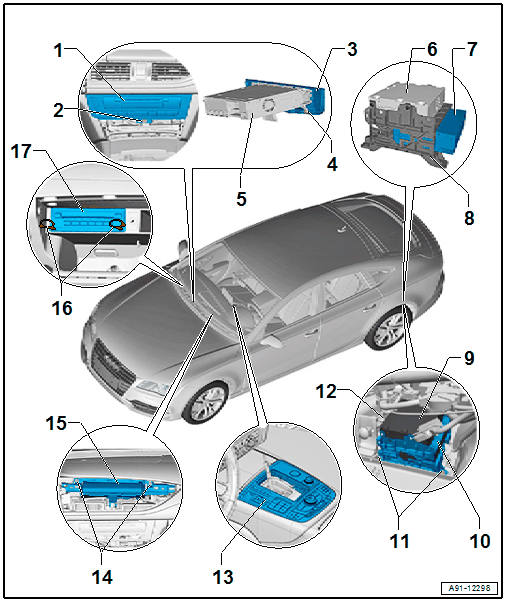

Information Electronics Control Module 1 -J794-
- Connector Assignment, Navigation 7T2. Refer to MMI NAVIGATION CONNECTOR ASSIGNMENT, 7T2 .
- Connector Assignment, Navigation plus 7T6. Refer to the Appropriate Wiring Diagram.
- Removing and Installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
Screw
- 3 Nm
Trim
Screw
- 1 Nm
- Quantity: 4
Information Electronics Control Module 1 -J794-
TV Tuner -R78-
Radio -R-
- Connector assignment Radio -R- CONNECTOR ASSIGNMENT, MMI, 8YQ .
- Removing and installing. Refer to Radio -R-, REMOVING AND INSTALLING, MMI, 8YH, THROUGH MY 2014 .
Rack
TV Tuner -R78-
Rack
Nut
- 4 Nm
- Quantity: 2
Nut
- 4 Nm
Multimedia System Control Head -E380-
- Connector assignment Multimedia System Control Head -E380- CONNECTOR ASSIGNMENT .
- Removing and installing. Refer to Multimedia System Control Head -E380-, REMOVING AND INSTALLING, QW1 .
- with Touchpad Control Module -J929-
- Replace with Touchpad Control Module -J929-. Refer to Touchpad Control Module -J929-, REMOVING AND INSTALLING, UJ1 .
Screw
- 3 Nm
- Quantity: 2
Front Information Display Control Head -J685-
- Connector assignment Front Information Display Control Head -J685- CONNECTOR ASSIGNMENT .
- 6.5 inch display with kinematics, removing and installing. Refer to 6.5 INCH DISPLAY WITH KINEMATICS, REMOVING AND INSTALLING .
- 8 inch display with kinematics, removing and installing. Refer to 8 INCH DISPLAY WITH KINEMATICS, REMOVING AND INSTALLING .
- Front and rear cover, removing and installing. Refer to FRONT DISPLAY FRONT AND REAR COVER, REMOVING AND INSTALLING .
- Display service position. Refer to 8-INCH FRONT DISPLAY SERVICE POSITION .
Radio Removal Tool :T10057
DVD Changer -R161-
- Connector assignment DVD Changer -R161- CONNECTOR ASSIGNMENT, THROUGH MY 2014 .
- Removing and installing. Refer to DVD CHANGER, REMOVING AND INSTALLING .
