OVERVIEW - Night Vision System Camera -R212-

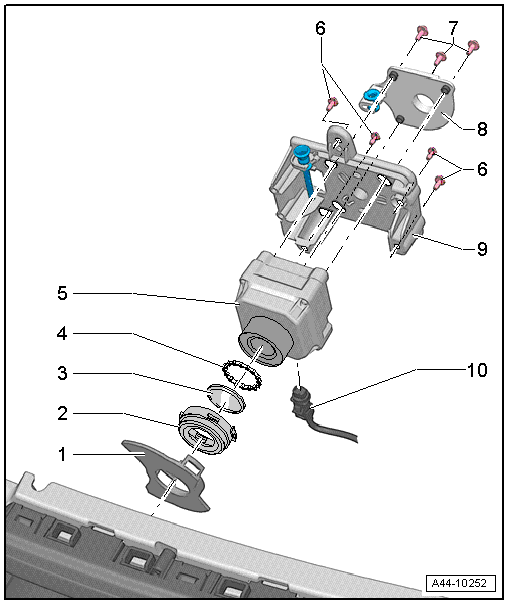

GWWA44-10252Courtesy of AUDI OF AMERICA, LLC
  1. Trim
  2. Cover
    • With quick release
  3. Protective Window
    • Removing and installing. Refer to Removing .
      NOTE:

      If the protective window is no longer water tight due to damage, then the Night Vision System Camera -R212- must be completely replaced.

  4. Seal
    • Always replace after every removal
  5. Night Vision System Camera -R212-
  6. Bolt
    • 6 Nm
    • Quantity: 4
  7. Bolt
    • 5 Nm
    • Quantity: 3
  8. Retaining Plate
  9. Retaining Plate
    • With adjusting screw and mount for the spray nozzle
  10. Connector
