Overview - Windshield Washer System: Notes

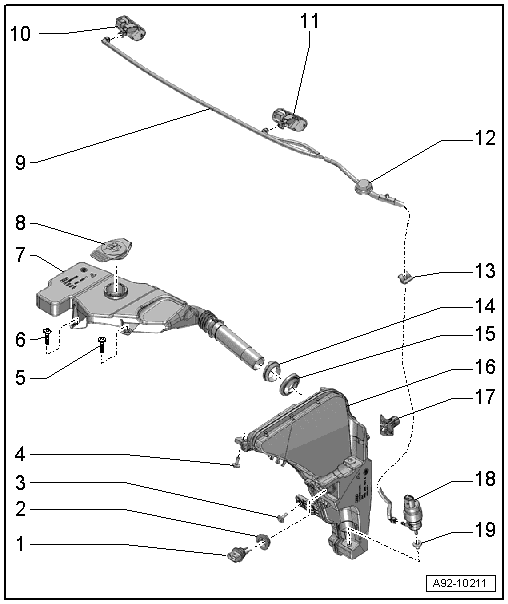

Fig 1: Exploded View Of Windshield Washer System

Courtesy of AUDI OF AMERICA, LLC

Windshield Washer Fluid Level Sensor -G33-
- Removing and installing. Refer to WINDSHIELD WASHER FLUID LEVEL SENSOR, REMOVING AND INSTALLING
Grommet
- Replace if damaged.
Bolt
- Tightening sequence. Refer to figure in Washer Fluid Bolts Tightening Sequence .
Bolt
- Tightening sequence. Refer to figure in Washer Fluid Bolts Tightening Sequence .
Bolt
- 8 Nm
Bolt
- 8 Nm
Filler Tube
- For the windshield washer fluid reservoir
- Removing and installing. Refer to WASHER FLUID RESERVOIR FILLER TUBE, REMOVING AND INSTALLING
Cap
- For the filler neck
Water Hose
- For the windshield washer system
Right Spray Nozzle
- Vehicle equipment version with Right Washer Nozzle Heater -Z21-
- Removing and installing. Refer to SPRAY NOZZLES, REMOVING AND INSTALLING
- Adjusting. Refer to SPRAY NOZZLES, ADJUSTING .
Left Spray Nozzle
- Vehicle equipment version with Left Washer Nozzle Heater -Z20-
- Removing and installing. Refer to SPRAY NOZZLES, REMOVING AND INSTALLING
- Adjusting. Refer to SPRAY NOZZLES, ADJUSTING .
Grommet
- For the windshield washer fluid hose inside the hood
Grommet
- For the windshield washer fluid hose on the fender
Grommet
- Replace if damaged.
O-Ring
- Replace if damaged.
Windshield Washer Fluid Reservoir
- Removing and installing. Refer to WINDSHIELD WASHER FLUID RESERVOIR, REMOVING AND INSTALLING
Securing Tab
- For the mount inside the fender end plate
Windshield Washer Pump -V5-
- Removing and installing. Refer to WINDSHIELD WASHER PUMP, REMOVING AND INSTALLING
Grommet
- Replace if damaged.
