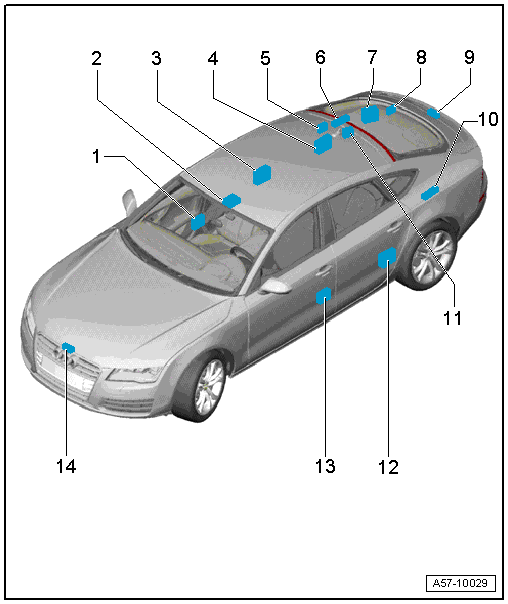

Component Location Overview - Central Locking
- Front Passenger Door Control Module -J387-
- Removing and installing. Refer to Driver Door Control Module -J386- AND Front Passenger Door Control Module -J387-, REMOVING AND INSTALLING .
- Anti-Theft Alarm System Sensor -G578-
- Right Rear Door Control Module -J389-
- Removing and installing. Refer to Left Rear Door Control Module -J388- AND Right Rear Door Control Module -J389-, REMOVING AND INSTALLING .
- Comfort System Central Control Module -J393-
- Removing and installing. Refer to Comfort System Central Control Module -J393-, REMOVING AND INSTALLING .
- Fuel Filler Door Unlock Motor -V155-
- Removing and installing. Refer to Fuel Filler Door Lock Motor -V155-, REMOVING AND INSTALLING .
- Rear Lid Motor 1 -V444-
- Removing and installing is identical to removing and installing the Rear Lid Motor 2 -V445-.
- Vehicle Positioning System Interface Control Module -J843-
- Removing and installing. Refer to Vehicle Positioning System Interface Control Module -J843-, REMOVING AND INSTALLING .
- Rear Spoiler Control Module -J223-
- Removing and installing. Refer to Rear Spoiler Control Module -J223-, REMOVING AND INSTALLING .
- Rear Lid Closing Assist Motor -V382-
- Rear Lid Motor 2 -V445-
- Removing and installing. Refer to OVERVIEW - REAR LID, Rear Lid Motor 1 -V444-, MOTOR WITH WORM GEAR .
- Rear Lid Control Module -J605-
- Removing and installing. Refer to Rear Lid Control Module -J605-, REMOVING AND INSTALLING .
- Left Rear Door Control Module -J388-
- Removing and installing. Refer to Left Rear Door Control Module -J388- AND Right Rear Door Control Module -J389-, REMOVING AND INSTALLING .
- Driver Door Control Module -J386-
- Removing and installing. Refer to Driver Door Control Module -J386- AND Front Passenger Door Control Module -J387-, REMOVING AND INSTALLING .
- Engine Hood Contact Switch -F266-
