Battery Cooling Module, Removing And Installing: Removing

Courtesy of AUDI OF AMERICA, LLC

-- Turn off the ignition.

-- Discharge the refrigerant circuit. Refer to Refrigerant Circuit, Discharging . .

-- Remove the inlet air guide for the traction battery. Refer to Traction Battery -A2- INLET AIR GUIDE, REMOVING AND INSTALLING .

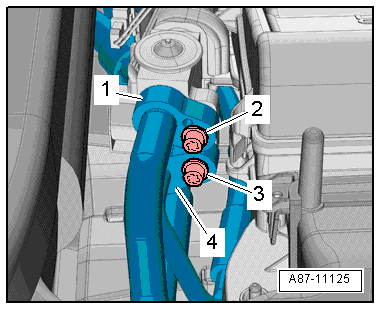

-- Remove the bolt -2- and disconnect the refrigerant line -1-.

-- Remove the bolt -3- and remove the refrigerant line -4-.

-- Seal the open lines and connections with clean plugs from the Engine Bung Set :VAS6122  .

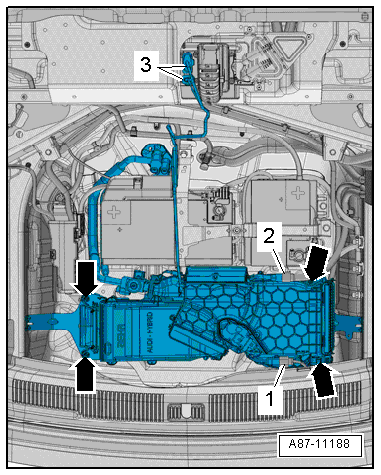

-- Disconnect and free up the connectors -1, 2 and 3-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nuts -arrows- and remove the battery cooling module.
