Overview - Battery Cooling Module: Notes
On Vehicles with A High Voltage System (hybrid vehicles)
Read and follow all of the supplemental warnings for all work performed on vehicles with the high voltage system. Refer to HIGH VOLTAGE VEHICLES SAFETY PRECAUTIONS .
Risk of unintended engine start
The ignition must be turned off and the ignition key must remain outside of the vehicle when working on vehicles with a high voltage system.
Handling High Voltage Cables:
- Do not stand on or place tools on high voltage cables and their components as it may damage the cable insulation.
- Never bend or kink high voltage cables forcefully as it may damage the cable insulation.
- The round high voltage connectors are color coded with an external color ring and are mechanically coded using the guide- or code tabs. Always make certain that the coding matches when connecting the round connector in order to avoid any mechanical damage the high voltage connector.
There is a risk of electrocution from damaged high voltage components.
Observe The Following When Working Around High Voltage Components And High Voltage Wires:
- Never work around high voltage components and cables with cutting, deformed, or sharp edged tools, or heat sources such as welding or soldering tools, heated air, and thermal glue.
- Inspect the high voltage components visually before beginning.
- Perform a visual inspection of the Electric Drive Power and Control Electronics -JX1-, the Electro-Drive Drive Motor -V141-, the Electrical A/C Compressor -V470- and the high voltage lines when working in the engine compartment.
- Perform a visual inspection of the high voltage lines and covers when working on the underbody.
- Perform a visual inspection of the high voltage lines and the Electrobox with the High Voltage System Maintenance Connector -TW- when working in the luggage compartment.
- Perform a visual inspection on all of the potential equalization cables.
Observe the following items when performing the visual inspection:
- The components do not display any signs of external damage.
- The high voltage cable insulation and the potential equalization cables are not damaged.
- The high voltage cables do not display any abnormal deformations.
- Every high voltage component is marked with a red warning label.
The attachments are controlled with the Battery Regulation Control Module -J840-. Refer to Vehicle Diagnostic Tester in the "Guided Fault Finding" Function.
If it is necessary for the following procedure to perform work in the vicinity of high voltage components, "perform a visual inspection of the high voltage components and cables for damages" (Refer to HIGH VOLTAGE VEHICLES SAFETY PRECAUTIONS .) and "always follow the warnings when working on the high voltage system" .

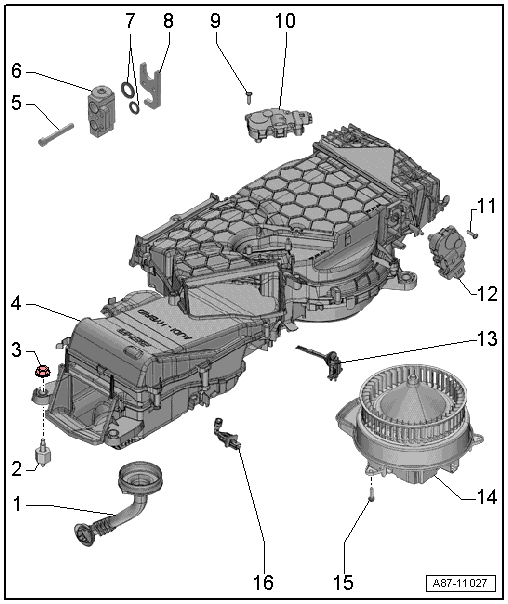

- Condensation Water Drain
- Checking, removing and installing. Refer to BATTERY COOLING MODULE CONDENSATION WATER DRAIN, REMOVING AND INSTALLING .
- Bonded Rubber Bushing
- Nut
- 9 Nm
- Battery Cooling Module
- Bringing into service position. Refer to BATTERY COOLING MODULE, BRINGING INTO SERVICE POSITION .
- Removing and Installing. Refer to BATTERY COOLING MODULE, REMOVING AND INSTALLING .
- Bolt
- 10 Nm
- Expansion Valve with Hybrid Battery Refrigerant Shut-Off Valve 2 -N517-
- Removing and Installing. Refer to EXPANSION VALVE WITH Hybrid Battery Refrigerant Shut-Off Valve 2 -N517-, REMOVING AND INSTALLING, VEHICLES WITH HIGH-VOLTAGE SYSTEM .
- O-Ring Seals
- Replacing. For the correct version.
- Coat with refrigerant oil before installing. Refer to REFRIGERANT CIRCUIT SEALS .
- Retaining Clip
- Bolt
- Tightening specification. Refer to OVERVIEW - REAR ADJUSTMENT MOTOR .
- Hybrid Battery Recirculation Door Positioning Motor 1 -V479- :
- Overview. Refer to OVERVIEW - REAR ADJUSTMENT MOTOR .
- Bolt
- Tightening specification. Refer to OVERVIEW - REAR ADJUSTMENT MOTOR .
- Hybrid Battery Recirculation Door Positioning Motor 2 -V480-
- Overview. Refer to OVERVIEW - REAR ADJUSTMENT MOTOR .
- Temperature Sensor before Hybrid Battery Evaporator -G756-
- Removing and Installing. Refer to Temperature Sensor before Hybrid Battery Evaporator -G756-, REMOVING AND INSTALLING .
- Battery Fan 1 -V457-
- Removing and Installing. Refer to Battery Fan 1 -V457-, REMOVING AND INSTALLING .
- Bolt
- 1.5 Nm
- Temperature Sensor after Hybrid Battery Evaporator -G757-
- Removing and Installing. Refer to Temperature Sensor after Hybrid Battery Evaporator -G757-, REMOVING AND INSTALLING .
