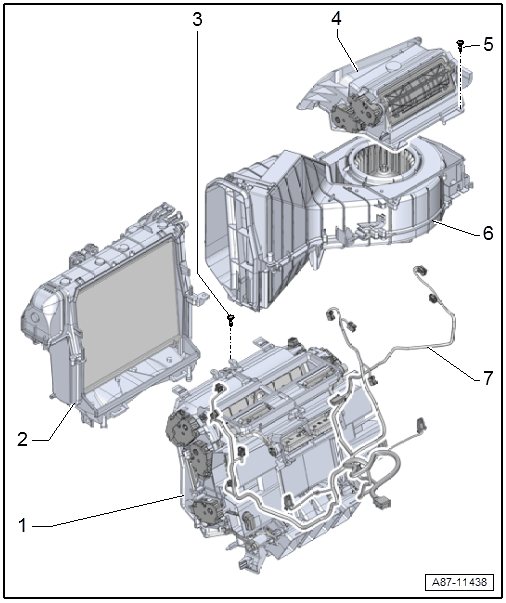

Component Location Overview - Heater And A/C Unit, Disassembling And Assembling

Courtesy of AUDI OF AMERICA, LLC

1. Air Distribution Housing
   • Depending on vehicle equipment level with or without the Auxiliary Heater Heating Element -Z35-
   • Removing and installing. Refer to HEATER AND A/C UNIT, REMOVING AND INSTALLING .
2. Evaporator Housing
   • Removing and installing. Refer to EVAPORATOR HOUSING, REMOVING AND INSTALLING .
3. Bolt
   • Quantity: 2
   • Tightening specification. Refer to OVERVIEW - ATTACHMENTS FOR HEATER AND A/C UNIT AND AIR INTAKE HOUSING .
4. Air Intake Manifold
   • Removing and installing. Refer to AIR INTAKE MANIFOLD, REMOVING AND INSTALLING .
5. Bolt
   • Tightening specification. Refer to OVERVIEW - HEATER AND A/C UNIT AIR INTAKE HOUSING .
6. Air Intake Duct
   • There are different versions.
   • Overview. Refer to OVERVIEW - HEATER AND A/C UNIT AIR INTAKE HOUSING .
7. Wiring Harness
   • There are different versions.
