Steering Column, Removing And Installing: Installing: Notes
Install in reverse order of removal. Note the following:
- If the steering column on a vehicle with the steering locking system was replaced, use the bolt installed in the new steering column for the Electronic Steering Column Lock Control Module -J764-.
NOTE:
If the steering column was replaced, use the bolt installed in the new steering column for the Electronic Steering Column Lock Control Module -J764-.
Clean the threaded hole (for example, using a thread tap) before installing the new bolt -2-.
Applies to Vehicles with the Steering Lock Lock-Up System

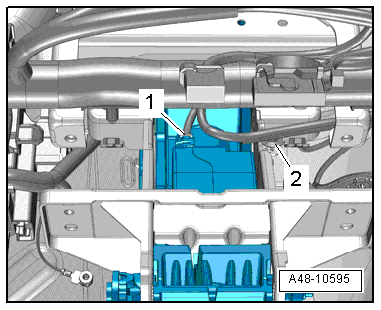

-- After connecting the connector, -1- make sure the wiring harness is secured by the clip -2-.
-- If the steering column needs to be adjusted, be careful not to pinch the wiring harness -3- for the Electronic Steering Column Lock Control Module -J764- -1- and make sure it does not come in contact with any sharp edges.
