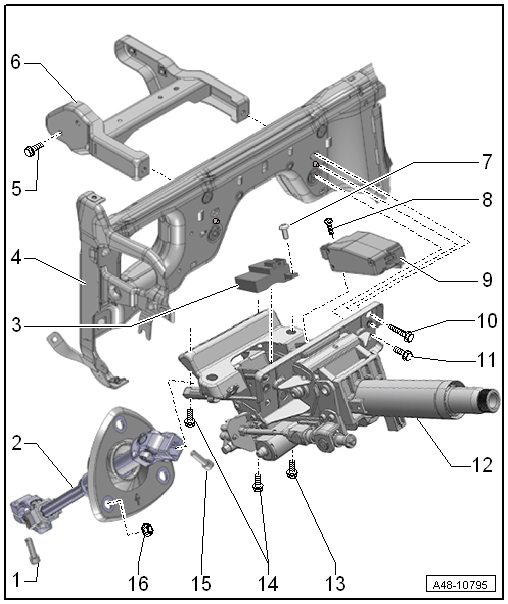

Overview - Steering Column, Power
- Bolt
- 30 Nm
- Always replace if removed
- The threaded hole for the bolt must always be cleaned (for example, using a thread tap).
- Install the bolt first, then pull on the steering intermediate shaft several time to make sure it is secure. Tighten the bolt.
- Steering Intermediate Shaft
- Removing and installing. Refer to STEERING INTERMEDIATE SHAFT, REMOVING AND INSTALLING .
- Pay attention to the installed position of the sealing boot
- Power Adjustable Steering Column Control Module -J866-
- Removing and installing. Refer to Power Adjustable Steering Column Control Module -J866-, REMOVING AND INSTALLING .
- Instrument Panel Crossmember
- Bolt
- Tightening specification. Refer to OVERVIEW - INSTRUMENT PANEL .
- Mounting Bracket
- Removing and installing. Refer to MOUNTING BRACKET, REMOVING AND INSTALLING .
- Bolt
- 5 Nm
- Bolt
- 5 Nm
- Electronic Steering Column Lock Control Module -J764-
- Removing and installing. Refer to Electronic Steering Column Lock Control Module -J764-, REMOVING AND INSTALLING .
- Installed on vehicles with lock lock-up system
- If the control module is being replaced, then select "replace" control module on the Vehicle Diagnostic Tester in Guided Functions .
- Bolt
- 20 Nm
- Quantity: 2
- Follow the assembly sequence when installing. Refer to Installing - Follow the Assembly Sequence when Installing ..
- Bolt
- 20 Nm
- Quantity: 2
- Follow the assembly sequence when installing. Refer to Installing - Follow the Assembly Sequence when Installing ..
- Steering Column
- There are different versions. For the correct allocation.
- Calibrate after replacing the steering column on a vehicle with dynamic steering. Refer to DYNAMIC STEERING BASIC SETTING .
- Removing and installing. Refer to STEERING COLUMN, REMOVING AND INSTALLING .
- Check for damage. Refer to STEERING COLUMN, CHECKING FOR DAMAGE .
- Bolt
- For attaching the pedal assembly
- Tightening specification. Refer to BRAKE PEDAL . .
- Bolt
- 20 Nm
- Quantity: 2
- Follow the assembly sequence when installing. Refer to Installing - Follow the Assembly Sequence when Installing .
- Bolt
- 30 Nm
- Always replace if removed
- The threaded hole for the bolt must always be cleaned (for example, using a thread tap).
- Nut
- 3 Nm
