Power Adjustable Steering Column Control Module -J866-, REMOVING AND INSTALLING: Removing

-- If the control module is being replaced, then select "replace" control module on the Vehicle Diagnostic Tester in Guided Functions  .

-- Remove the steering column. Refer to STEERING COLUMN, REMOVING AND INSTALLING .

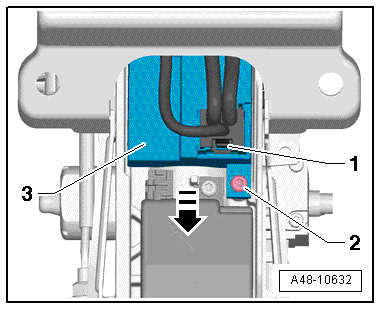

-- Disconnect the connector -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -2-.

-- Slightly lift the Power Adjustable Steering Column Control Module -J866- -3- and remove it from the steering column in direction of -arrow-.
