Tie Rod, Removing And Installing: Installing: Notes
Install in reverse order of removal. Note the following:
Replace the boot each time it is removed.
Coat the inside of slits in the boot all the way around and evenly with power steering gear grease before installing.
Check the seat for the boot on the steering gear for damage before installing. If the seal seat on the steering gear housing is damaged, the steering gear must be replaced.

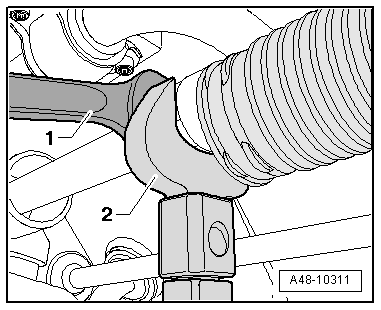

-- Attach the tie rod using the Torque Wrench Insert - Open Jaw :VAG1923 -2-. Counterhold at the power steering gear coupling rod with an open end wrench -1-.
-- Replace the spring clamp -3- and the clamp -1-.
