Overview - Data Bus On Board Diagnostic Interface

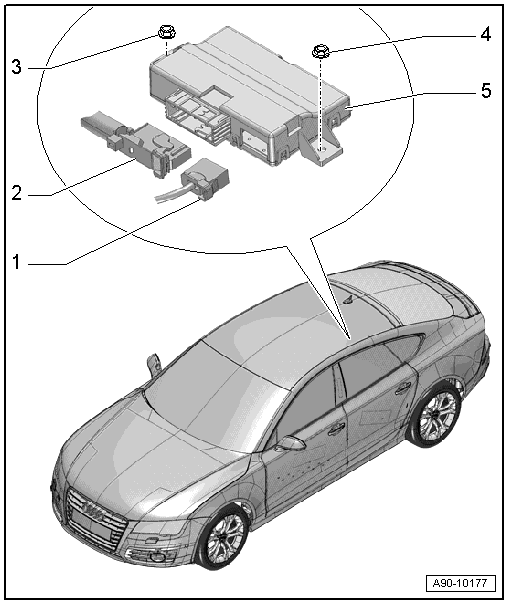

Fig 1: Exploded View Of Data Bus On Board Diagnostic Interface
GWWA90-10177Courtesy of AUDI OF AMERICA, LLC
  1. Fiber Optic Cable Connector
    • Seal with Fiber-Optic Repair Set - Connector Protective Caps :VAS6223/9
  2. Connector
    • For Data Bus On Board Diagnostic Interface -J533-
  3. Nut
    • 2 Nm
  4. Nut
    • 2 Nm
  5. Data Bus On Board Diagnostic Interface -J533-
