Trailer Hitch Socket And Towing Recognition Control Module Assembly Overview, Sedan

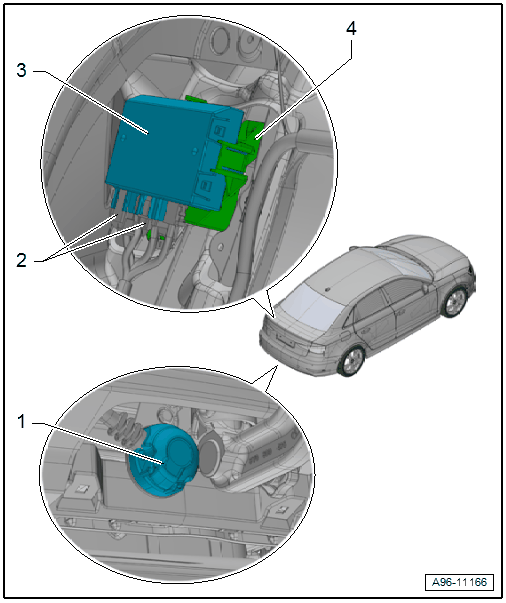

Fig 1: Trailer Hitch Components Location (Sedan)

Courtesy of AUDI OF AMERICA, LLC

1. Trailer Socket -U10-
   • Removing and Installing. Refer to Trailer Hitch .
   • For the connector assignment. Refer to Trailer Hitch .
2. Connectors
3. Towing Recognition Control Module -J345-
   • Removing and installing. Refer to Towing Recognition Control Module -J345-, REMOVING AND INSTALLING, 3-DOOR AND 5-DOOR .
4. Frame
   • For Towing Recognition Control Module -J345-
