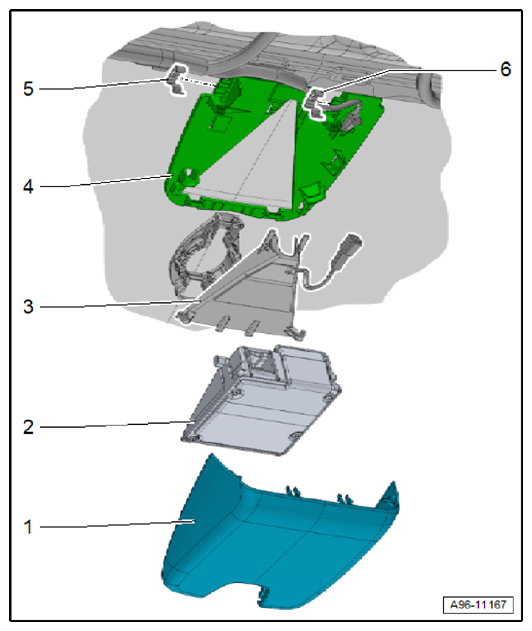

7.1 Overview - Driver Assistance Systems Front Camera

1. Cover
2. Driver Assistance Systems Front Camera - R242-
   • Removing and installing. Refer to 7.2 Driver Assistance Systems Front Camera, Removing and Installing
3. Lens Shade
   • With heated windshield
   • Removing and installing. Refer to 7.2 Driver Assistance Systems Front Camera, Removing and Installing
4. Retaining Plate
   • Cannot be separated from the windshield
5. Retaining Clip
   • Replace after every removal
6. Retaining Clip
   • Replace after every removal
