External Audio Source Connection -R199-, Removing And Installing, Through My 2016: Removing
-- Turn off the ignition and all electrical equipment and remove the ignition key.
-- Remove The Front Center Console Storage Compartment. Refer to FRONT CENTER CONSOLE STORAGE COMPARTMENT, REMOVING AND INSTALLING .
-- Release and disconnect the connectors from the External Audio Source Connection -R199-.

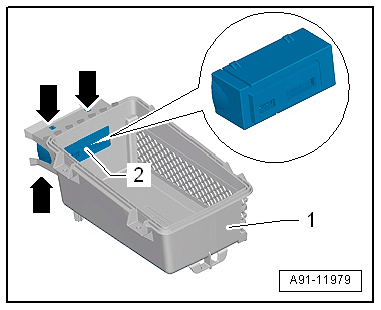

-- Press the tabs -arrows- on the External Audio Source Connection -R199- -2- and remove the External Audio Source Connection -R199- -2- from the storage compartment -1-.
