Rearview Camera System Control Module -J772-, Removing And Installing, Sedan, Through My 2016: Removing

-- Turn off the ignition and all electrical equipment and remove the ignition key.

-- Remove The Luggage Compartment Right Side Trim Panel. Refer to OVERVIEW - LUGGAGE COMPARTMENT SIDE TRIM PANEL / LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .

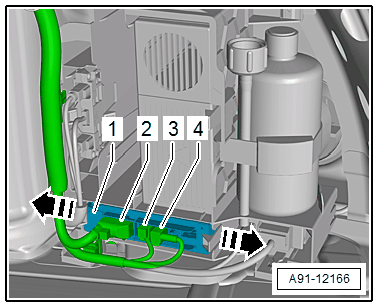

The Rearview Camera System Control Module -J772- -1- is only clipped into the bracket.

Courtesy of AUDI OF AMERICA, LLC

-- Release and disconnect the connectors -2 through 4- from the Rearview Camera System Control Module -J772- -1-.

-- Press the catches in direction of -arrow- and remove the Rearview Camera System Control Module -J772- -1- from the bracket.
