Distance Regulation Control Module -J428- Adapter Frame, Replacing, Version 2 Through My 2016: Installing
Install in reverse order of removal and note the following:
NOTE:
Replace the quick release.
The stud bolts in the adapter frame are pre-set. If necessary, correct the setting.
-- Place the control module on a soft and clean surface.

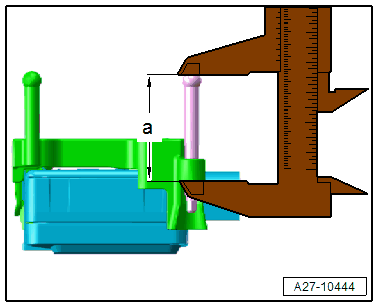

-- Measure the dimension -a- on all the stud bolts using the digital caliper and adjust them if necessary.
- Adjust the dimension -a- on all stud bolts. Refer to Installing - Measure the dimension -a- at all stud bolts using the :VAS6335 and correct if necessary. .
