BASEPLATE FOR Distance Regulation Control Module -J428-, REMOVING AND INSTALLING, VERSION 2 FROM MY 2017: Removing

-- Remove the distance regulation control module. Refer to Distance Regulation Control Module -J428-, REMOVING AND INSTALLING .

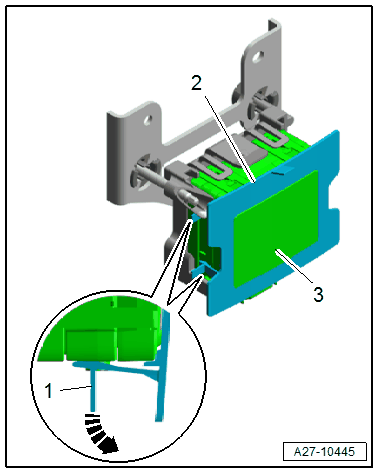

-- Release the retaining tabs -1- in the direction of -arrow-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the cover -2- from the distance regulation control module -3-.

-- Release the locking mechanisms -2- in the direction of -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the distance regulation control module from the stud bolts -1-.

-- Remove the retaining plate -3- from the Distance Regulation Control Module -J428- -4-.
