Distance Regulation Control Module -J428- Retaining Plate, Removing And Installing, Version 1: Removing

-- Remove the distance regulation control module. Refer to Distance Regulation Control Module -J428-, REMOVING AND INSTALLING .

Courtesy of AUDI OF AMERICA, LLC

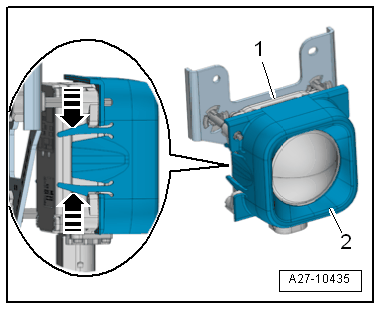

-- Open the tabs in direction of -arrows-.

-- Remove the cover -2- from the Distance Regulation Control Module -J428- -1-.

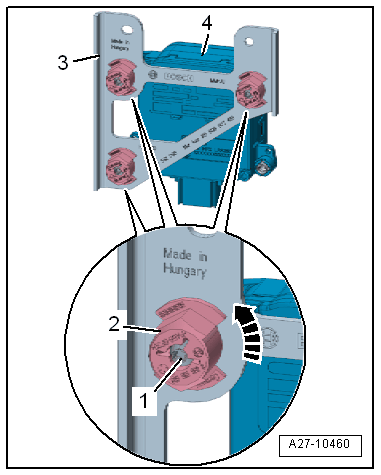

Fig 1: Adjusting Screw

Courtesy of AUDI OF AMERICA, LLC

-- Turn the quick release -2- counterclockwise in direction of -arrow-.

-- Remove the quick release from the stud bolts -1-.

-- Remove the retaining plate -3- from the Distance Regulation Control Module -J428- -4-.
