Control Module For Emergency Call Module And Communication Unit Connector End View (J949, T4BN, T26E)

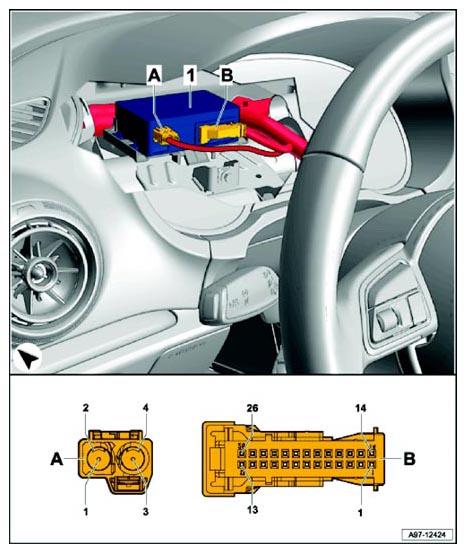

Fig 1: Control Module for Emergency Call Module And Communication Unit Connector End View (J949, T4bn, T26e)
Courtesy of AUDI OF AMERICA, LLC
1
Control module for emergency call module and communication unit -J949-
A
4-Pin Connector -T4bn-, purple
B
26-Pin Connector -T26e-, black
