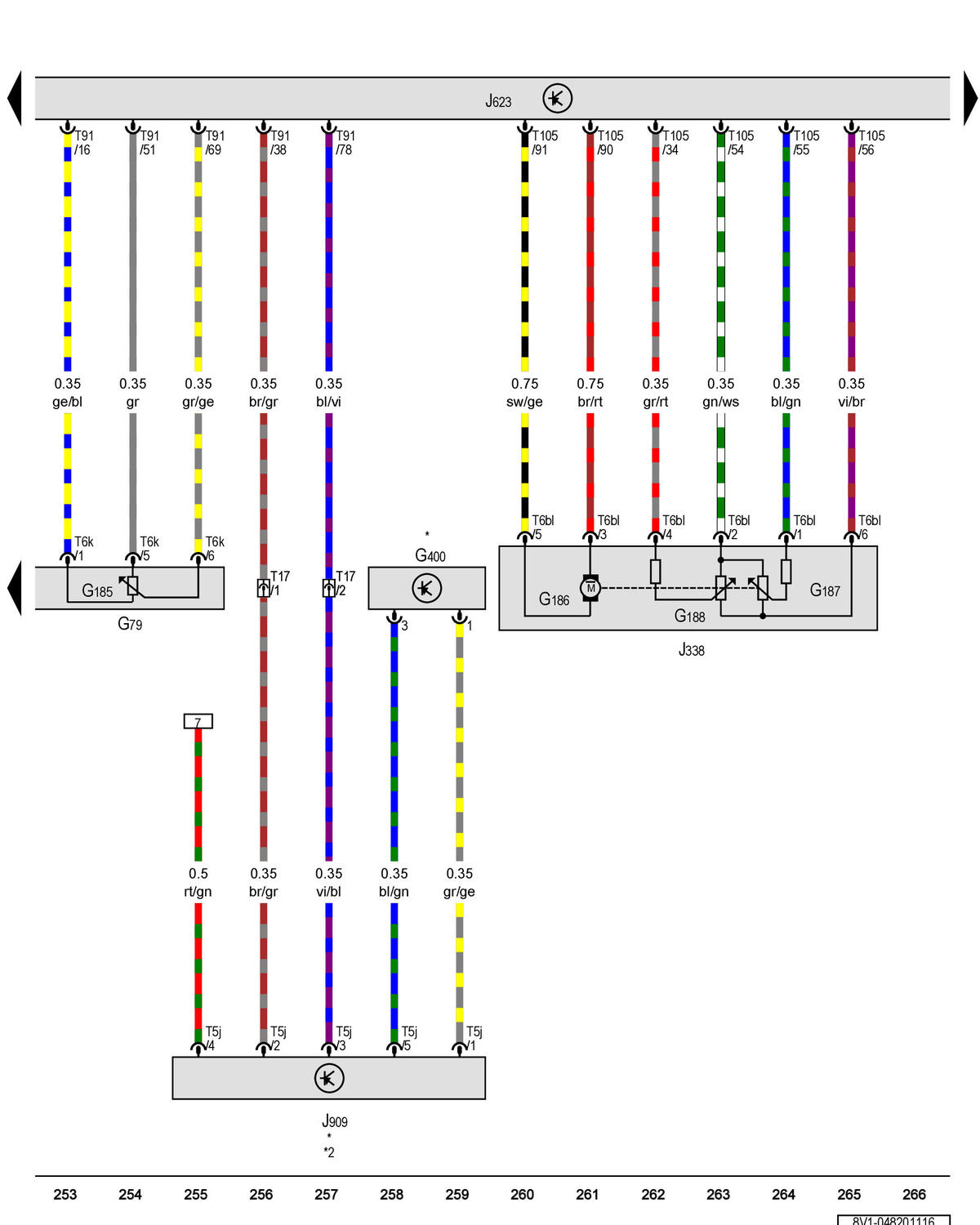

Accelerator Pedal Position Sensor, Accelerator Pedal Position Sensor 2, Throttle Valve Control Module, Engine Control Module, Fuel Tank Leak Detection Control Module: Notes

GWW8V1-048201116Courtesy of AUDI OF AMERICA, LLC
