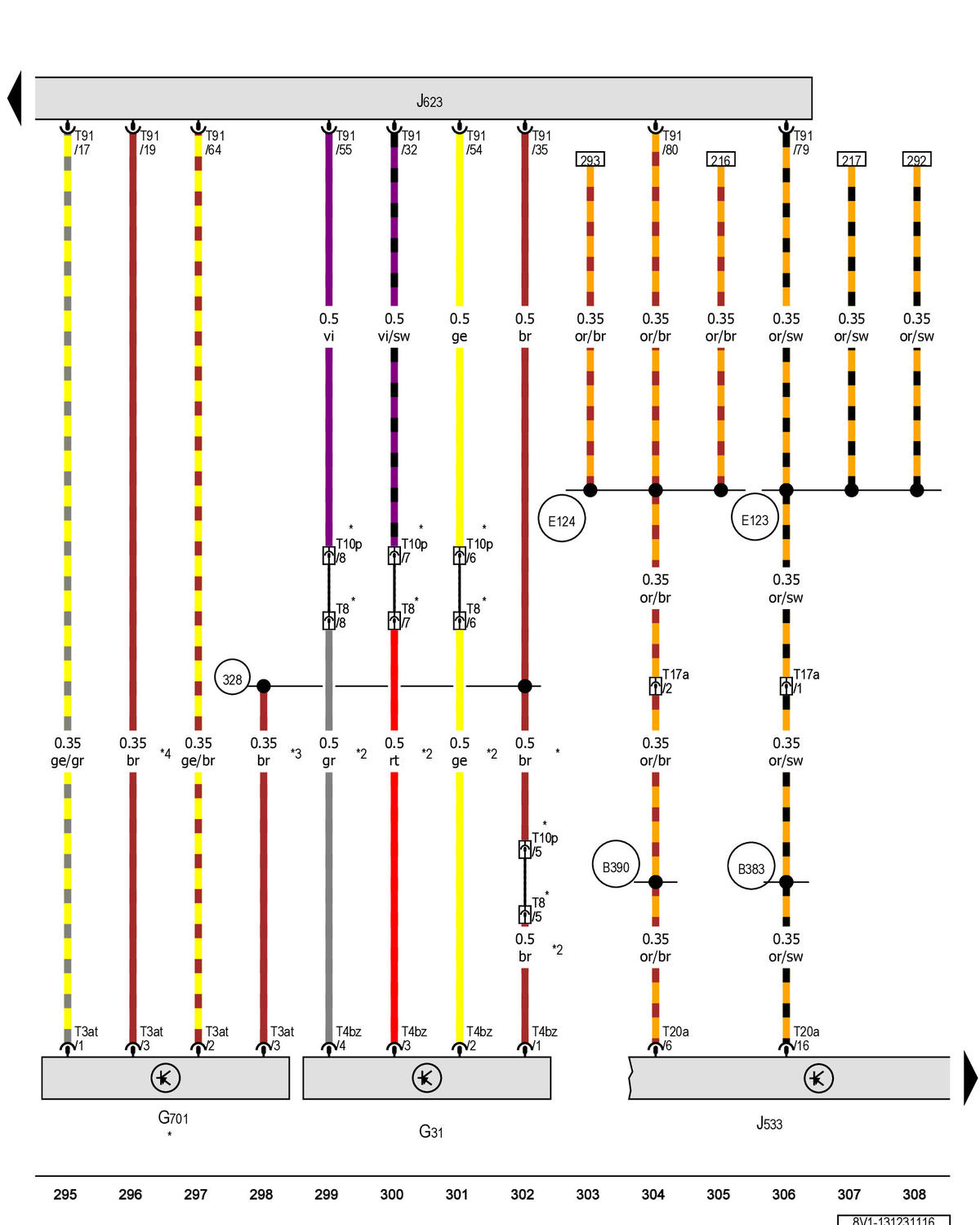

Charge Air Pressure Sensor, Transmission Neutral Position Sensor, Data Bus On Board Diagnostic Interface, Engine Control Module: Notes

GWW8V1-131231116
