Heater Control Module -J65- /A/C Control Module -J301- //Climatronic Control Module -J255- DISPLAY AND CONTROL HEAD, REMOVING AND INSTALLING, A3: Removing

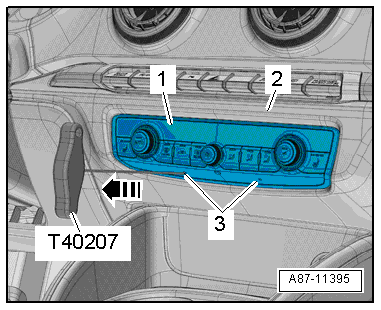

-- Position the : T40207 (or : 3438 ) on the openings -3- and carefully pull the control head -1- out of the mount -2- -arrow-.

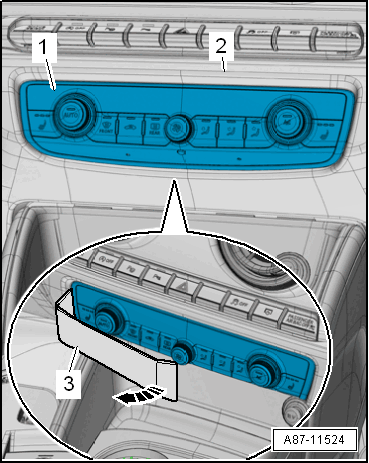

If the control head -1- cannot be removed as described, it must be carefully pressed out of the mount -2- using a plastic wedge -3- (for example with a : T40233 or the wedge T10383/2 from the set : T10383 ) (using the : T40207 or the T-Handle Hook : 3438 to pull) -arrow-, as shown.
If the control head -1- sits so securely in the instrument panel mount that the plastic wedge -3- is deformed when pressing out, a flat-head screwdriver can be also used to reinforce the plastic wedge -3- (place between the plastic wedge -3- and the control head -1-).
Depending on the instrument panel there can be a clip (usually the right lower) after loosening the control head -1- that can get hooked in the instrument panel shell, if necessary push this clip for example with a finger (or a screwdriver) toward the control head -1-.

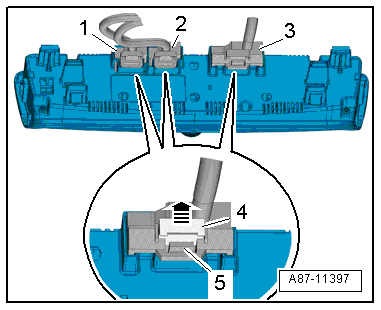

-- Slide the safety mechanism -4- upward in direction of -arrow- and press the release -5- inward to disconnect the connectors -1, 2 and 3-.
