Control Module For Information Electronics 1 Connector End View (J794, T4AL, T4V)

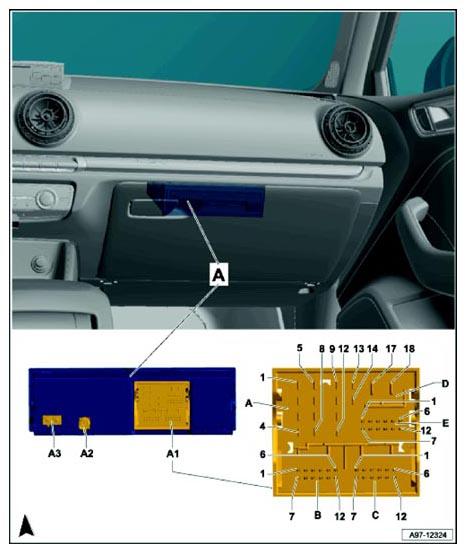

Fig 1: Control Module For Information Electronics 1 Connector End View (J794, T4al, T4v)

Courtesy of AUDI OF AMERICA, LLC

A	Control Module for Information Electronics 1 -J794-
A1	Connector block, composed of:
8-Pin Connector -T8ag- (connector A), brown
12-Pin Connector -T12x- (connector B), blue
12-Pin Connector -T12y- (connector C), green
8-Pin Connector -T8j- (connector D), black
12-Pin Connector -T12v- (connector E), grey
A2	4-Pin Connector -T4al- (where applicable)
A3	4-Pin Connector -T4v-
