Power Steering Control Module Connector End View (J500, T3Z, T2AG, T5F)

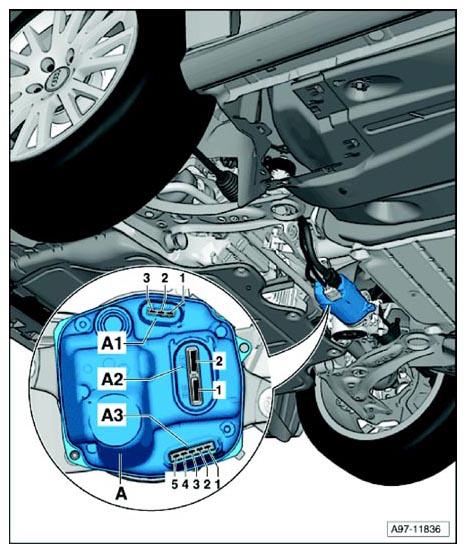

Fig 1: Power Steering Control Module Connector End View (J500, T3z, T2ag, T5f)

Courtesy of AUDI OF AMERICA, LLC

A	Power Steering Control Module -J500-
A1	3-Pin Connector -T3z-, black
A2	Double Connector -T2ag-, black
A3	5-Pin Connector -T5f-
