Rear View Camera System Control Module Connector End View (J772, T20I, T2DF, T2EP)

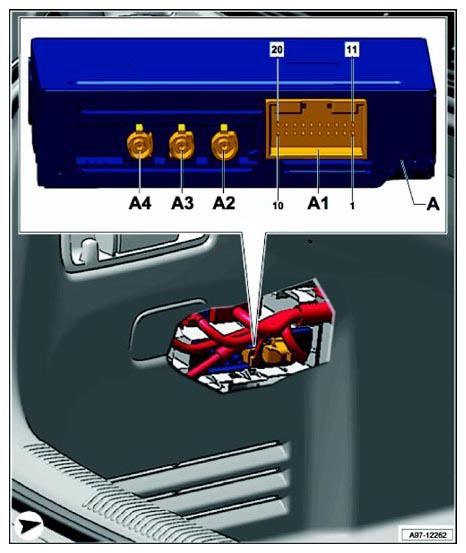

Fig 1: Rear View Camera System Control Module Connector End View (J772, T20i, T2df, T2ep)

Courtesy of AUDI OF AMERICA, LLC

A	Rear View Camera System Control Module -J772-
A1	20-Pin Connector -T20i-, black
A2	Double Connector -T2df-, green
A3	Double Connector -T2ep-, grey
A4	Not used

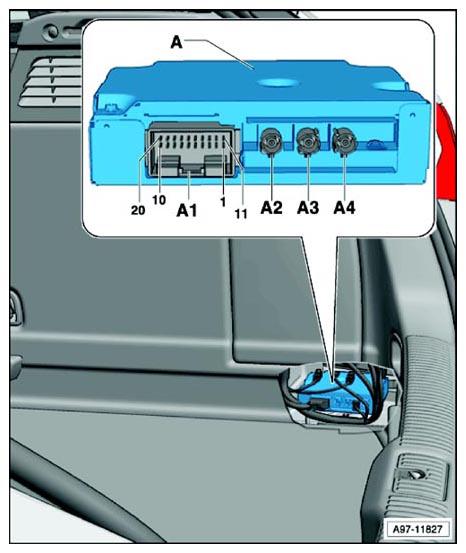

Fig 1: Rear View Camera System Control Module Connector End View (J772, T20i, T2df, T2ep)

Courtesy of AUDI OF AMERICA, LLC

A	Rear View Camera System Control Module -J772-
A1	20-Pin Connector -T20i-, black
A2	Double Connector -T2df-, green
A3	Double Connector -T2ep-, grey
A4	Not used

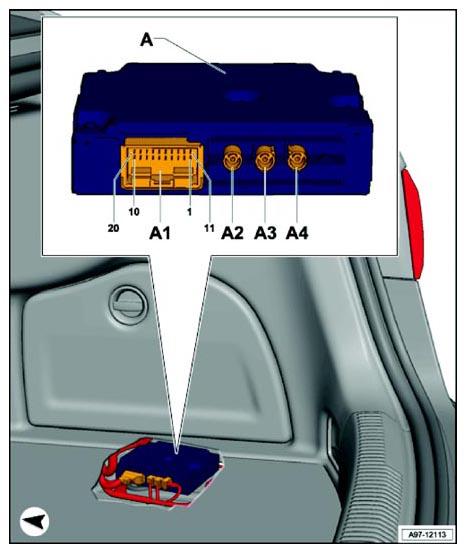

Fig 1: Rear View Camera System Control Module Connector End View (J772, T20i, T2df, T2ep)

Courtesy of AUDI OF AMERICA, LLC

A	Rear View Camera System Control Module -J772-
A1	20-Pin Connector -T20i-, black
A2	Double Connector -T2df-, green
A3	Double Connector -T2ep
A4	Not used
