Steering Column Electronic Systems Control Module Connector End View (J527, T4, T16A)

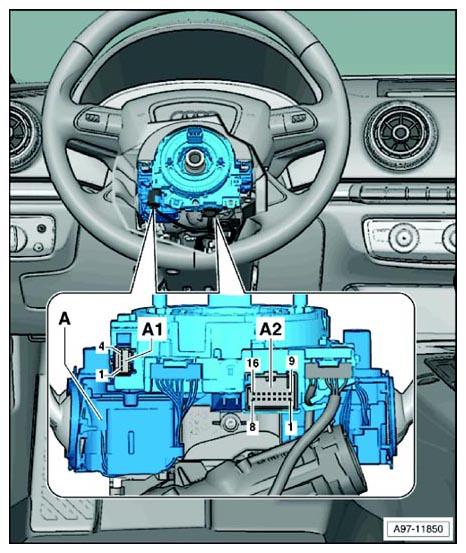

Fig 1: Steering Column Electronic Systems Control Module Connector End View (J527, T4, T16a)

Courtesy of AUDI OF AMERICA, LLC

A	Steering Column Electronic Systems Control Module -J527-
A1	4-Pin Connector -T4-, yellow
A2	16-Pin Connector -T16a-, black
