Towing Recognition Control Module Connector End View (J345, T16I, T12B)

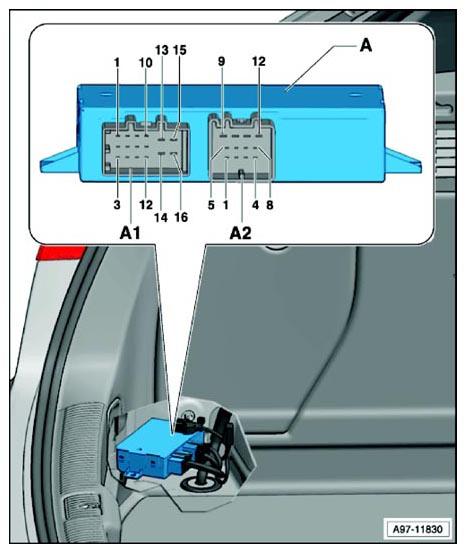

Fig 1: Towing Recognition Control Module Connector End View (J345, T16I, T12b)
G10360242Courtesy of AUDI OF AMERICA, LLC
A Towing Recognition Control Module -J345-
A1 16-Pin Connector -T16I-, black
A2 12-Pin Connector -T12b-, red

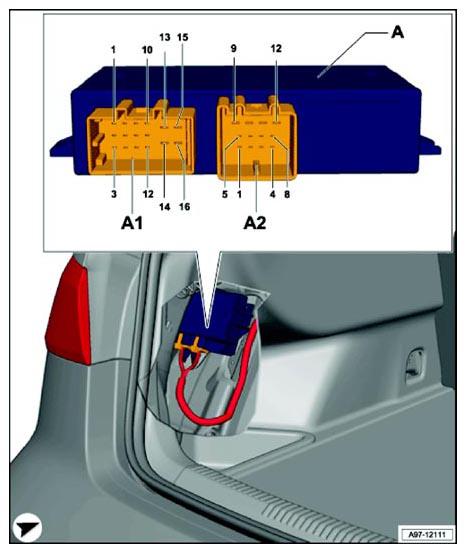

Fig 1: Towing Recognition Control Module Connector End View (J345, T16I, T12b)
G10360264Courtesy of AUDI OF AMERICA, LLC
A Towing Recognition Control Module -J345-
A1 16-Pin Connector -T16I-, black
A2 12-Pin Connector -T12b-, red

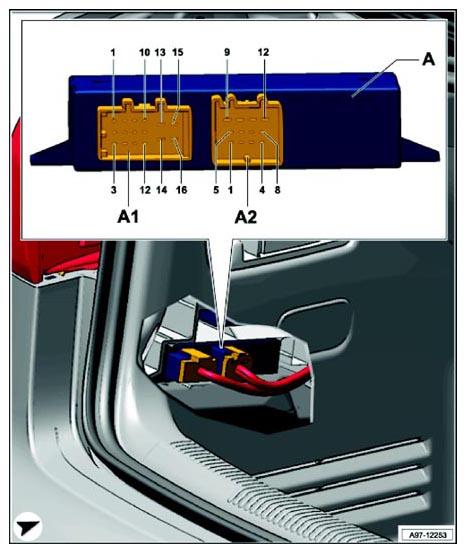

Fig 1: Towing Recognition Control Module Connector End View (J345, T16I, T12b)
G10360268Courtesy of AUDI OF AMERICA, LLC
A Towing Recognition Control Module -J345-
A1 16-Pin Connector -T16I-, black
A2 12-Pin Connector -T12b-, red
