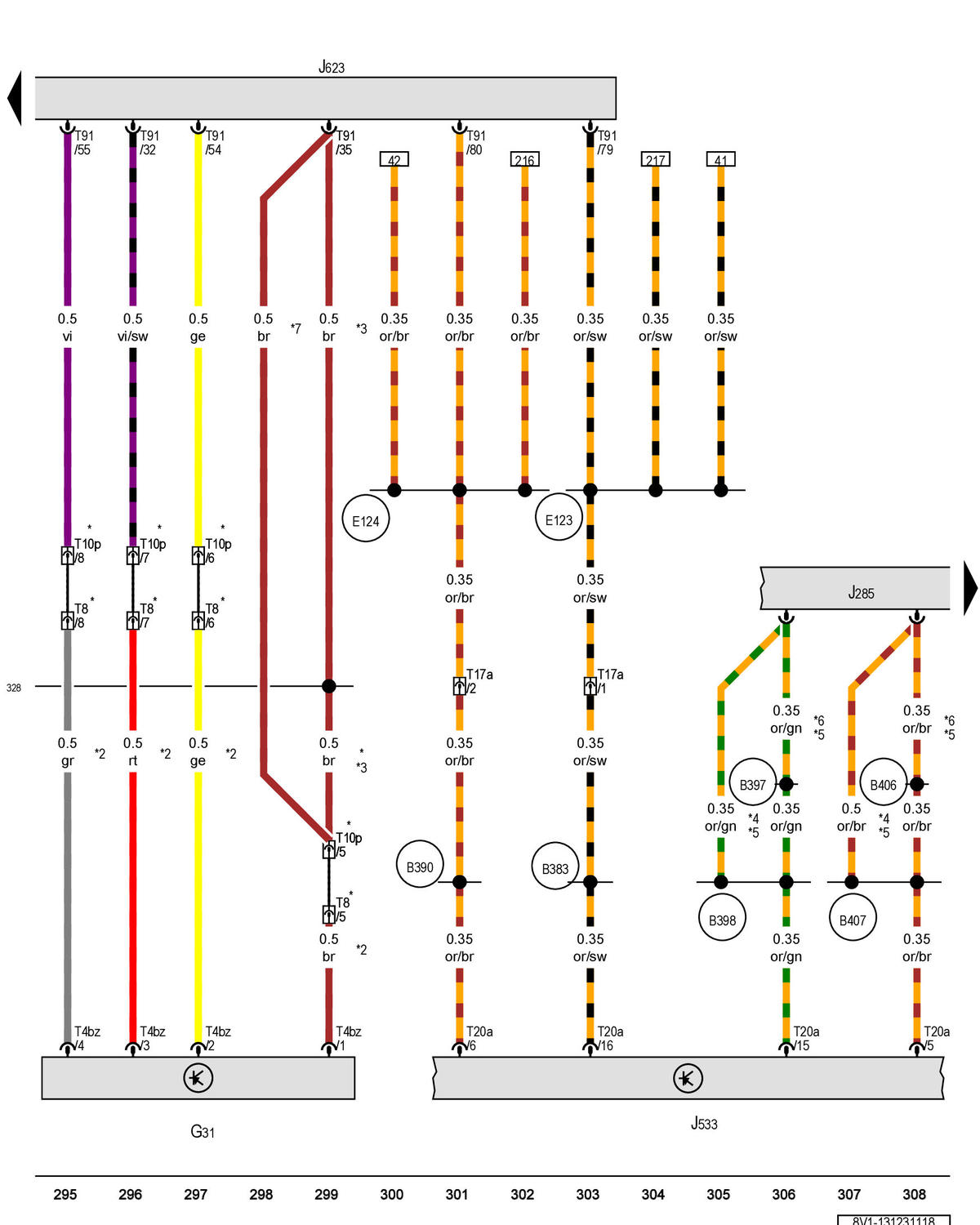

Charge Air Pressure Sensor, Instrument Cluster Control Module, Data Bus On Board Diagnostic Interface, Engine/Motor Control Module

Courtesy of AUDI OF AMERICA, LLC

G31

Charge Air Pressure Sensor Type:BT, Slpdok:, Aim:BTG31

J285

Instrument Cluster Control Module Type:BT, Slpdok:, Aim:BTJ285

J533

Data Bus on Board Diagnostic Interface

J623

Engine/Motor Control Module Type:BT, Slpdok:, Aim:BTJ623

T4bz

4-Pin Connector, Black

T8

8-Pin Connector, Black Type:BT, Slpdok:, Aim:BTT8

T10p

10-Pin Connector, Black Type:BT, Slpdok:, Aim:BTT10p

T17a

17-Pin Connector, On the Lower Left A-Pillar, Black Type:BT, Slpdok:, Aim:BTT17a

T20a

20-Pin Connector, Red

T91

91-Pin Connector, Black

328

Sensor Ground Connection 2 (in Engine/Motor Compartment Wiring Harness)

B383

Powertrain CAN Bus High Connection 1 (in Main Wiring Harness)

B390

Powertrain CAN Bus Low Connection 1 (in Main Wiring Harness)

B397

Comfort System CAN Bus High Connection 1 (in Main Wiring Harness)

B398

Comfort System CAN Bus High Connection 2 (in Main Wiring Harness)

B406

Comfort System CAN Bus Low Connection 1 (in Main Wiring Harness)

B407

Comfort System CAN Bus Low Connection 2 (in Main Wiring Harness)

E123

CAN Bus Drive High Connection 1 (in Engine Wiring Harness)

E124

CAN Bus Drive Low Connection 1 (in Engine Wiring Harness)

*

Depending on Equipment

*2

The Color of the Wires Depends on Vehicle Equipment

*3

Omitted as a Running Change

*4

For RHD Vehicles

*5

Refer to Applicable Wiring Diagram for Instrument Cluster

*6

For LHD Vehicles

*7

Running Change
