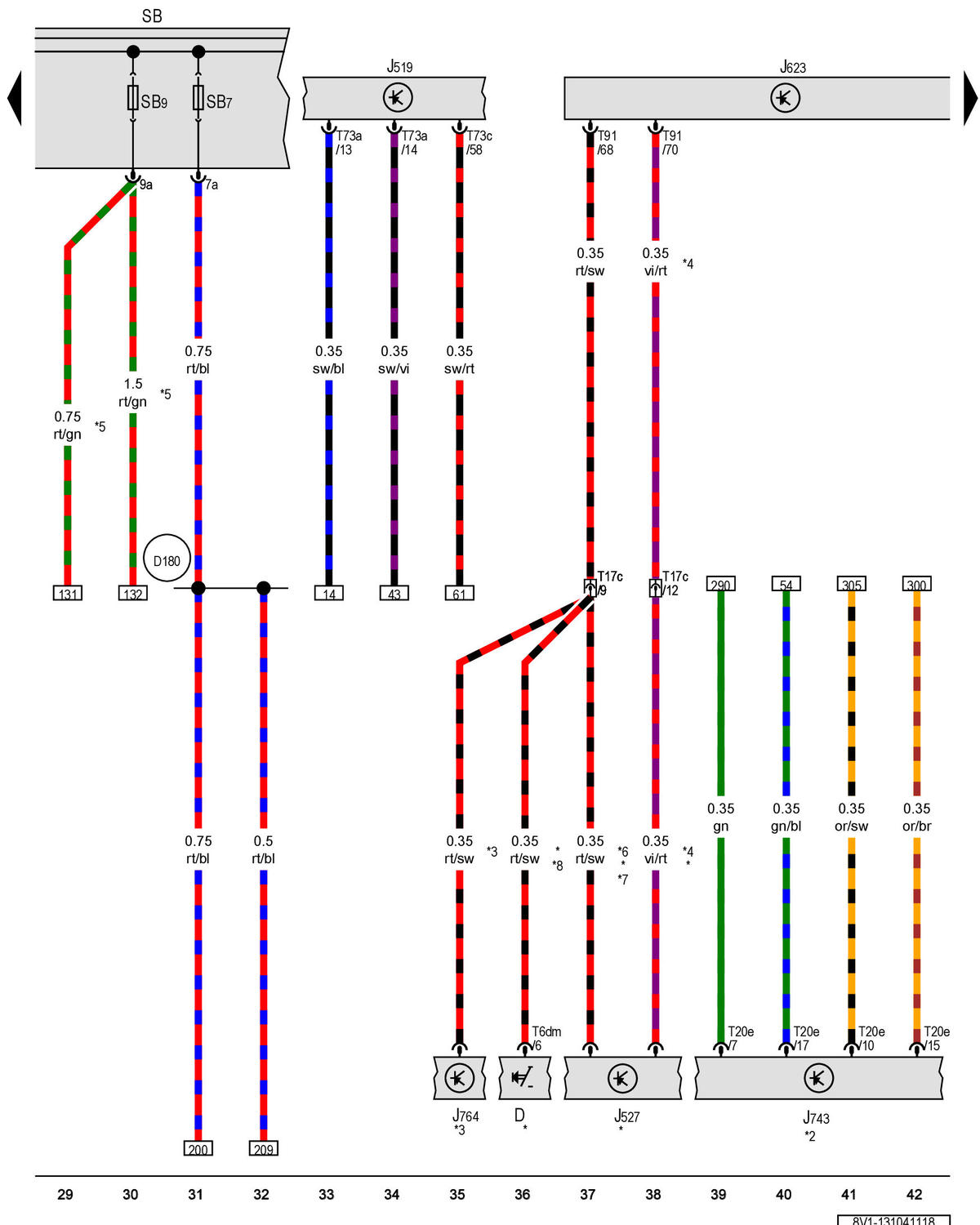

Vehicle Electrical System Control Module, Steering Column Electronics Control Module, Engine/Motor Control Module, Dual-Clutch Transmission MECHATRONIC, Fuse 7 (On Fuse Panel B)

Courtesy of AUDI OF AMERICA, LLC

D

Ignition/Starter Switch

J519

Vehicle Electrical System Control Module Type:BT, Slpdok:, Aim:BTJ519

J527

Steering Column Electronics Control Module Type:BT, Slpdok:, Aim:BTJ527

J623

Engine/Motor Control Module Type:BT, Slpdok:, Aim:BTJ623

J743

Dual-Clutch Transmission Mechatronic Type:BT, Slpdok:, Aim:BTJ743

J764

Electronic Steering Column Lock Control Module Type:BT, Slpdok:, Aim:BTJ764

SB

Fuse Panel B Type:BT, Slpdok:, Aim:BTSB-

SB7

Fuse 7 (On Fuse Panel B) Type:BT, Slpdok:, Aim:BTSB-

SB9

Fuse 9 (On Fuse Panel B) Type:BT, Slpdok:, Aim:BTSB-

T6dm

6-Pin Connector, Black

T17c

17-Pin Connector, On the Lower Left A-Pillar, Red Type:BT, Slpdok:, Aim:BTT17c

T20e

20-Pin Connector, Black

T73a

73-Pin Connector, Black

T73c

73-Pin Connector, Black

T91

91-Pin Connector, Black

D180

Connection 87A (in Engine/Motor Compartment Wiring Harness)

*

Refer to Applicable Steering Column Electronics Wiring Diagram

*2

For Vehicles with Automatic Transmission (DSG)

*3

Refer to the Applicable Access/Start Authorization System Wiring Diagram

*4

For Vehicles with Cruise Control System

*5

Depending on Equipment

*6

For Vehicles Without Access/Start Authorization System

*7

Through June 2018

*8

From July 2018
