Electronic Steering Column Lock Control Module -J764-, Removing And Installing: Removing
If a control module is being replaced, then select the function "Replace" for the respective control module using the Vehicle Diagnostic Tester in "Guided Functions".
Follow the instructions on the screen.
-- Straighten the wheels.
-- Pull the lever on the side of the steering column downward.
-- Push the steering column as far down as possible and remove it.
-- Push lever under steering column upward again.
-- Remove the steering column switch module. Refer to STEERING COLUMN SWITCH MODULE .
The shavings must not get into the steering column.
Protect the steering column from any falling shavings using, for example, a cloth.

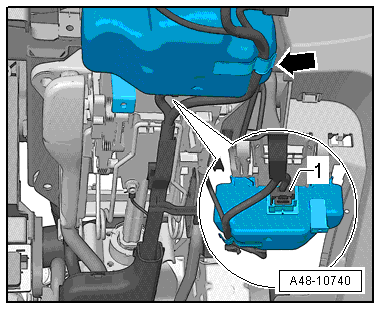

-- Release the connector -1- and remove it from the Electronic Steering Column Lock Control Module -J764-.
-- Free up the wire at the retaining bracket -arrow-.
-- Drill out the shear bolts -arrows- using an angle hand drill and an 8.5 mm diameter drill bit.
-- Remove any shavings with a brush.
-- Carefully remove the Electronic Steering Column Lock Control Module -J764- from the steering column.
