Control Module, Removing And Installing, Generation V: Removing

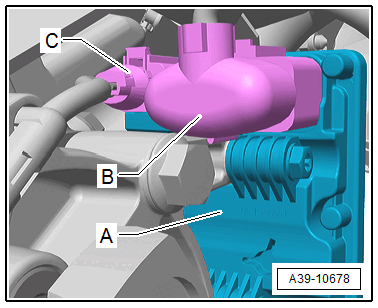

-- Remove the connectors -B and C- from the All-Wheel Drive Control Module -J492- -A-.

Courtesy of AUDI OF AMERICA, LLC

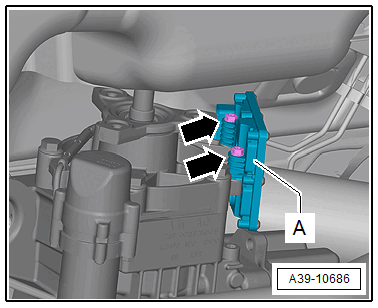

-- Remove the bolts -arrows- and remove the All-Wheel Drive Control Module -J492- -A-.

Courtesy of AUDI OF AMERICA, LLC
