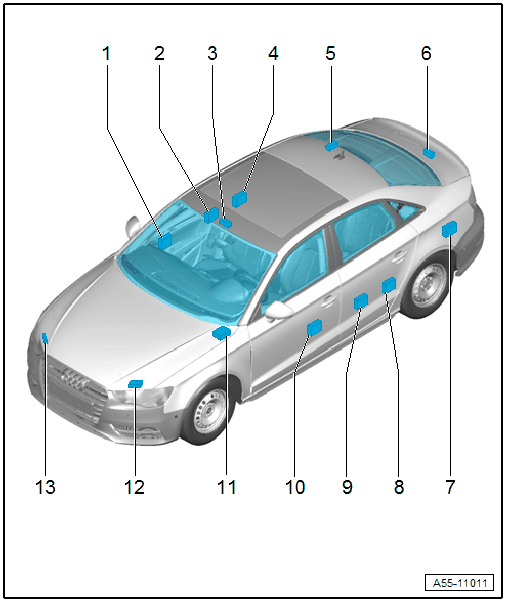

Component Location Overview, Sedan
- Front Passenger Door Control Module -J387-
- Removing and installing. Refer to Driver Door Control Module -J386- AND Front Passenger Door Control Module -J387-, REMOVING AND INSTALLING
- Front Passenger Side Rear Window Regulator Motor Control Module -J1017-
- Equipped on some models
- Removing and installing. Refer to Driver Side Rear Window Regulator Motor Control Module -J1016- AND Front Passenger Side Rear Window Regulator Motor Control Module -J1017-, REMOVING AND INSTALLING
- Anti-Theft Alarm System Sensor -G578-
- Overview. Refer to OVERVIEW - INTERIOR MONITORING .
- Passenger Side Rear Door Control Module -J927-
- Equipped on some models
- Removing and installing. Refer to Driver Side Rear Door Control Module -J926- AND Passenger Side Rear Door Control Module -J927-, REMOVING AND INSTALLING
- Fuel Filler Door Lock Motor -V155-
- Removing and installing. Refer to Fuel Filler Door Lock Motor -V155-, REMOVING AND INSTALLING
- Latch
- With the Rear Lid Central Locking System Motor -V53- / Rear Lid Alarm Switch -F123-, cannot be replaced separately.
- Vehicle Positioning System Interface Control Module -J843-
- Removing and installing. Refer to Vehicle Positioning System Interface Control Module -J843-, REMOVING AND INSTALLING
- Driver Side Rear Door Control Module -J926-
- Equipped on some models
- Removing and installing. Refer to Driver Side Rear Door Control Module -J926- AND Passenger Side Rear Door Control Module -J927-, REMOVING AND INSTALLING
- Driver Side Rear Window Regulator Motor Control Module -J1016-
- Equipped on some models
- Removing and installing. Refer to Driver Side Rear Window Regulator Motor Control Module -J1016- AND Front Passenger Side Rear Window Regulator Motor Control Module -J1017-, REMOVING AND INSTALLING
- Driver Door Control Module -J386-
- Removing and Installing
- Vehicle Electrical System Control Module -J519-
- Component Location Overview. Refer to OVERVIEW - CONTROL MODULES .
- Engine Hood Contact Switch -F266-
- In the latch
- Removing and installing. Refer to Engine Hood Contact Switch -F266-, REMOVING AND INSTALLING
- Hood Contact Switch 2 -F329-
- In the latch
- Removing and installing. Refer to Engine Hood Contact Switch -F266-, REMOVING AND INSTALLING
