Overview - Glow Plug System

WARNING: This page is about a different car, the 2016 Audi A3 and 2015 Audi A3. However, it is still accessible from the selected car via links, so may be relevant.

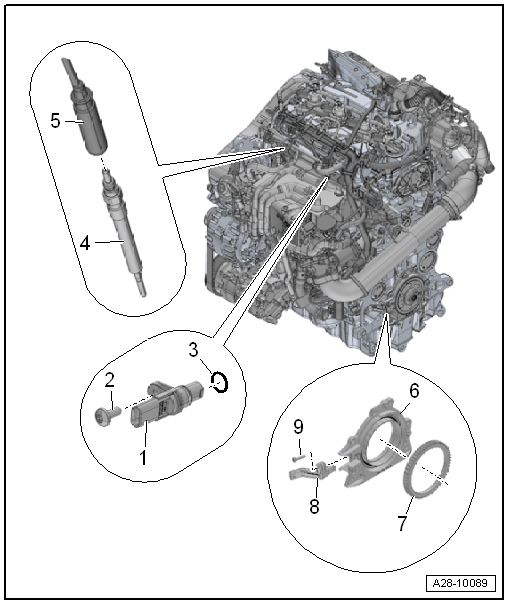

Fig 1: Exploded View Of Glow Plug System

Courtesy of AUDI OF AMERICA, LLC

Camshaft Position Sensor -G40-
- Removing and Installing. Refer to Camshaft Position Sensor -G40-, REMOVING AND INSTALLING .
Bolt
- 9 Nm
O-Ring
- If damaged, replace the Camshaft Position Sensor -G40-
Glow Plug
- Glow Plug 1 -Q10-
- Glow Plug 2 -Q11-
- Glow Plug 3 -Q12-
- Glow Plug 4 -Q13-
- Depending on the emissions standard, a cylinder internal pressure sensor is also integrated in the glow plug:
  - Cylinder 1 Combustion Chamber Pressure Sensor -G677-
  - Cylinder 2 Combustion Chamber Pressure Sensor -G678-
  - Cylinder 3 Combustion Chamber Pressure Sensor -G679-
  - Cylinder 4 Combustion Chamber Pressure Sensor -G680-
- Glow Plug Versions and Tightening Specifications. Refer to Fig 2.
- No interchanging of components of various manufacturers.
- Removing and Installing. Refer to GLOW PLUG, REMOVING AND INSTALLING .
Connector
Transmission Side Sealing Flange
- Removing and Installing. Refer to SEALING FLANGE, REMOVING AND INSTALLING, TRANSMISSION SIDE .
Sensor Wheel
- For the Engine Speed Sensor -G28-
- Removing and Installing. Refer to SEALING FLANGE, REMOVING AND INSTALLING, TRANSMISSION SIDE .
Engine Speed Sensor -G28-
- Removing and Installing. Refer to Engine Speed Sensor -G28-, REMOVING AND INSTALLING .
Bolt
- 5 Nm

Glow Plug Versions and Tightening Specifications

Fig 2: Exploded View Of Glow Plug Versions

Courtesy of AUDI OF AMERICA, LLC

1 - Glow Plug with Combustion Chamber Pressure Sensor

12 Nm

2 - Glow Plug without Combustion Chamber Pressure Sensor

17 Nm
