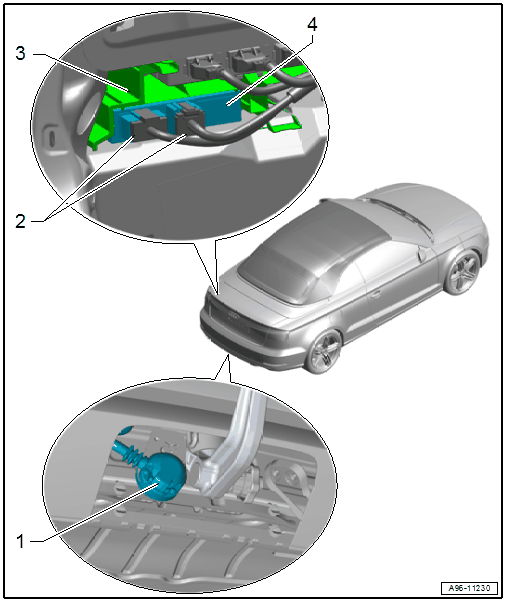

Trailer Hitch Socket And Towing Recognition Control Module Assembly Overview, Convertible

Courtesy of AUDI OF AMERICA, LLC

1. Trailer Socket -U10-
   • Removing and Installing. Refer to Trailer Hitch .
   • For the connector assignment. Refer to Trailer Hitch .
2. Connectors
3. Frame
   • For Towing Recognition Control Module -J345-
4. Towing Recognition Control Module -J345-
   • Removing and installing. Refer to Towing Recognition Control Module -J345-, REMOVING AND INSTALLING, CONVERTIBLE .
