CLIMATRONIC Control Module Connector End View (J255, T16D, T16C, T20B)

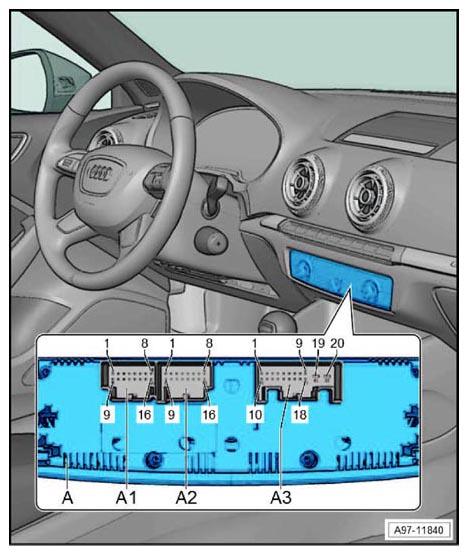

Fig 1: Climatronic Control Module Connector End View (J255, T16d, T16c, T20b)

Courtesy of AUDI OF AMERICA, LLC

A	Climatronic Control Module -J255-
A1	16-Pin Connector -T16d-
A2	16-Pin Connector -T16c-
A3	20-Pin Connector -T20b-, black
