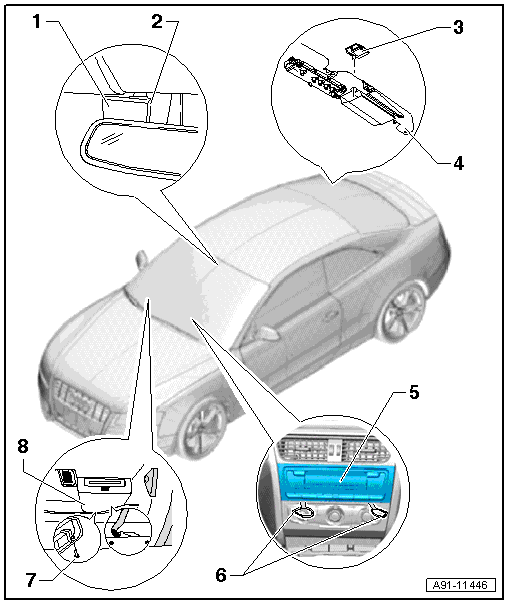

Navigation System Component Location Overview, Japan

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Traffic Data Antenna -R173-
   • Removing and installing, refer to TRAFFIC DATA ANTENNA, REMOVING AND INSTALLING
2. Pin
3. GPS Antenna -R50-
   • Overview, refer to ANTENNA SYSTEMS .
4. Antenna bracket
5. Information Electronics Control Module 1 -J794-
   • Connector assignment, refer to NAVIGATION CONNECTOR ASSIGNMENT, JAPAN .
   • Removing and installing, refer to INFORMATION ELECTRONICS CONTROL MODULE 1 -J794-, REMOVING AND INSTALLING
6. Radio Removal Tool :T10057
7. Pin
8. Chip Card Reader Control Module -J676-
   • Connector assignment, refer to CHIP CARD READER CONTROL MODULE -J676-, CONNECTOR ASSIGNMENT .
   • Removing and installing, refer to CHIP CARD READER CONTROL MODULE, REMOVING AND INSTALLING
