Overview - Windshield Washer System: Notes

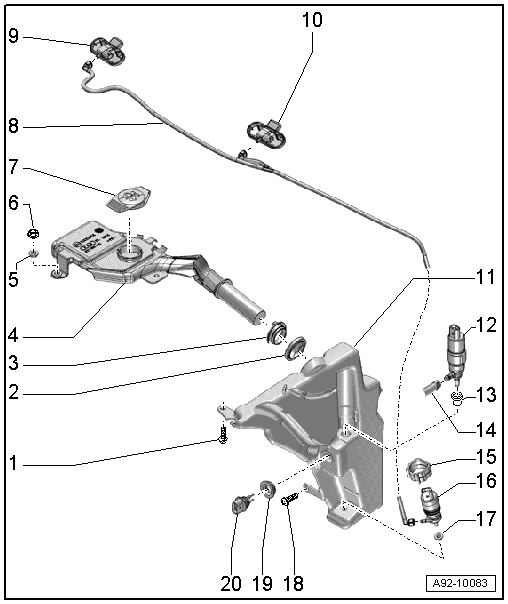

Fig 1: Exploded View Of Washer Fluid Reservoir, Hoses & Nozzles

Courtesy of AUDI OF AMERICA, LLC

Bolt
- Tightening sequence. Refer to Figure
O-Ring
- Replace if damaged.
Grommet
- Replace if damaged.
Filler Tube
- For the windshield washer fluid reservoir
- Removing and installing. Refer to WASHER FLUID RESERVOIR FILLER TUBE, REMOVING AND INSTALLING .
Support Ring
Nut
- Tightening specification. Refer to SUSPENSION STRUT AND UPPER CONTROL ARM
- Threaded connection shared with tower brace
Cap
- For the filler neck
Windshield Washer Fluid Hose
- For the windshield washer system
Right Spray Nozzle
- Depending on vehicle equipment with Right Washer Nozzle Heater -Z21-
- Removing and installing. Refer to SPRAY NOZZLES, REMOVING AND INSTALLING .
- Adjusting. Refer to appropriate service information
Left Spray Nozzle
- Depending on vehicle equipment with Left Washer Nozzle Heater -Z20-
- Removing and installing. Refer to SPRAY NOZZLES, REMOVING AND INSTALLING .
- Adjusting. Refer to appropriate service information.
Windshield Washer Fluid Reservoir
- Removing and installing. Refer to WINDSHIELD WASHER FLUID RESERVOIR, REMOVING AND INSTALLING .
Headlamp Washer Pump -V11-
Grommet
Windshield Washer Fluid Hose
- For the headlamp washer system
Retaining Ring
- For Windshield Washer Pump -V5-
Windshield Washer Pump -V5-
- Removing and installing. Refer to WINDSHIELD WASHER PUMP, REMOVING AND INSTALLING .
Grommet
Bolt
- Tightening sequence. Refer to Figure
Grommet
Windshield Washer Fluid Level Sensor -G33-
- Removing and installing. Refer to WINDSHIELD WASHER FLUID LEVEL SENSOR, REMOVING AND INSTALLING .
