Overview - Windshield Wiper System: Notes

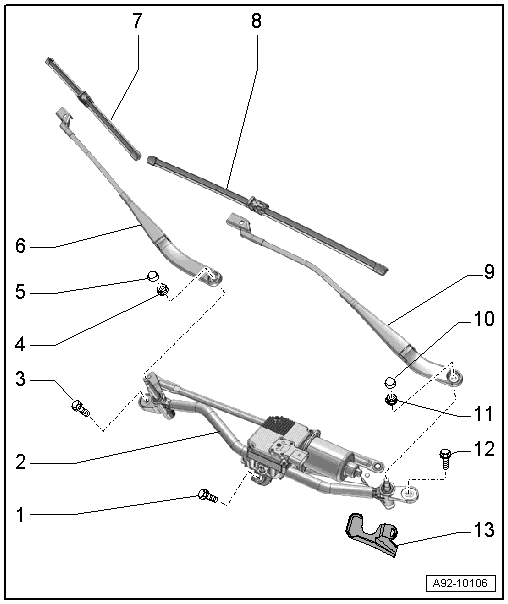

Fig 1: Exploded View Of Wiper System

Courtesy of AUDI OF AMERICA, LLC

Bolt

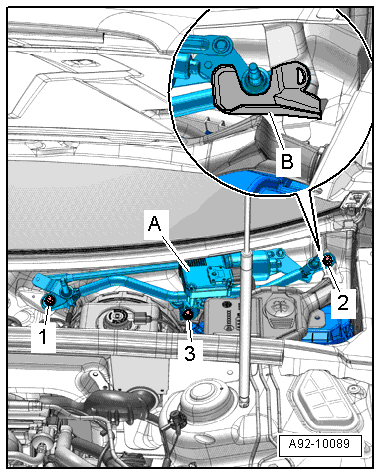

- Tightening sequence. Refer to Figure
Windshield Wiper Motor
- With Wiper Motor Control Module -J400-
- Removing and installing. Refer to WINDSHIELD WIPER MOTOR -V-, REMOVING AND INSTALLING .
Bolt
- Tightening sequence. Refer to Figure
Nut
- 17 Nm
Cap
Passenger Side Windshield Wiper Arm
- There are different lengths. Refer to the Parts Information.
- Removing and installing. Refer to WINDSHIELD WIPER ARMS, REMOVING AND INSTALLING .
- Adjusting. Refer to WINDSHIELD WIPER ARMS, ADJUSTING .
Passenger Side Windshield Wiper Blade
- There are different lengths. Refer to the Parts Information..
- Replacing. Refer to WIPER BLADE, REMOVING AND INSTALLING .
Driver Side Windshield Wiper Blade
- There are different lengths. Refer to the Parts Information..
- Replacing. Refer to WIPER BLADE, REMOVING AND INSTALLING .
Driver Side Windshield Wiper Arm
- There are different lengths. Refer to the Parts Information..
- Removing and installing. Refer to WINDSHIELD WIPER ARMS, REMOVING AND INSTALLING .
- Adjusting. Refer to WINDSHIELD WIPER ARMS, ADJUSTING .
Cap
Nut
- 17 Nm
Bolt
- Tightening sequence. Refer to Figure
Water Drain Channel
