Component Location Overview - Central Locking: Notes

• Central locking functions electronically.
• Actuators in doors are not integrated in the door lock and have 2 motors.
• The adjusters cannot be replaced separately.
• The first motor locks the door and the second motor locks the interior door mechanism (Safe function).
• The door can no longer be opened from the inside.
• The Comfort System Central Control Module:J393  unlocks any locked doors locks when the vehicle is in a crash and the airbags deploy.
• The Comfort System Central Control Module -J393- is located in the luggage compartment on the right side behind the side trim panel cover.

Engine hood contact switch, SAFE function indicator lamp, driver and front passenger door control module. Refer to ENGINE HOOD CONTACT SWITCH, SAFE INDICATOR LAMP, DRIVER AND FRONT PASSENGER DOOR CONTROL MODULE.

Comfort system central control module, rear lid lock cylinder contact switch, rear lid central locking system motor, anti-theft alarm system sensor, and fuel tank lid unlock motor. Refer to COMFORT SYSTEM CENTRAL CONTROL MODULE, REAR LID LOCK CYLINDER CONTACT SWITCH, CENTRAL LOCKING MOTOR IN THE REAR LID, ANTI-THEFT ALARM SYSTEM SENSOR AND FUEL TANK LID UNLOCK MOTOR.

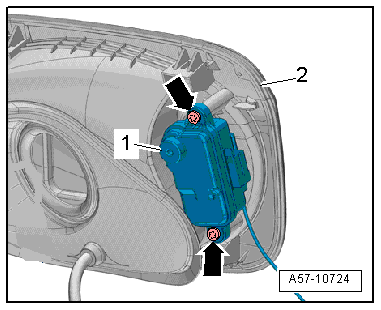

Tightening specification for fuel filler door unlock motor in the Audi RS5. Refer to Figure
