Comfort System Central Control Module -J393-, Removing And Installing: Removing

Fig 1: Identifying Fuel Filler Door Unlock Motor

Courtesy of AUDI OF AMERICA, LLC

-- Open the right luggage compartment side trim panel.

-- Open the clip -arrow- and remove the Parking Aid Control Module -J446- -1- from the frame.

-- Move the Parking Aid Control Module -J446- to the side with the wires -2 through 4- still connected.

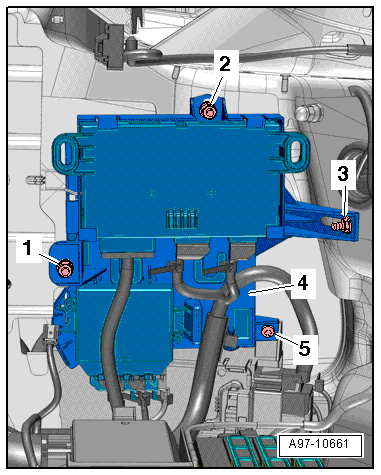

-- Remove the nuts -1 through 3- and bolt -5-.

Fig 2: Comfort System Central Control Module Retaining Frame, Tightening Specifications

Courtesy of AUDI OF AMERICA, LLC

-- Disengage the frame -4- at the threaded pins and move it as far as possible toward the luggage compartment side trim panel.

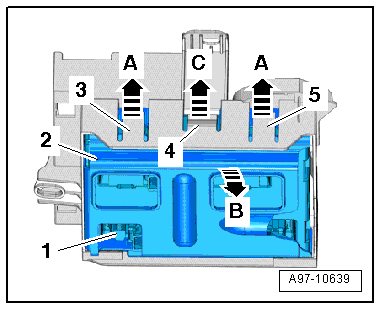

-- Release the mounting tabs -3- and -5- in the direction of -arrow A- and at the same time, tilt the cover -2- as far as possible in the direction of -arrow B-.

Fig 3: Removing Comfort System Central Control Module -1- With Cover

Courtesy of AUDI OF AMERICA, LLC

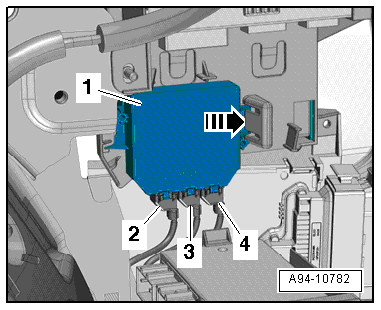

-- Release the mounting tab -4- -arrow C- and remove the Comfort System Central Control Module -J393- -item 1- with the cover on the frame.

NOTE:

Connectors are not shown in the illustration.

-- Disconnect the connectors -1 and 3-.

Fig 4: Pulling Fuse -7- In -Direction Of Arrow- & Disconnect Antenna Connector -6

Courtesy of AUDI OF AMERICA, LLC

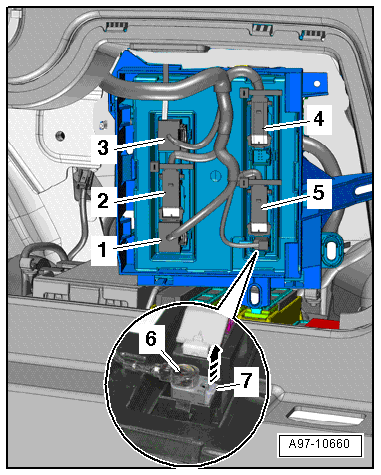

-- Carefully pull the fuse -7- in the direction of the -arrow- and disconnect the antenna connector -6-.

-- Disconnect the connectors -2, 4 and 5-.

-- Press the retaining tab -1- to disconnect the connector, turn the retaining bracket in the direction of the -arrow- and remove the connector.

Fig 5: Catch And Retainer

Courtesy of AUDI OF AMERICA, LLC

-- Remove the Comfort System Central Control Module -J393-.
