Ground Cable With Battery Monitoring Control Module -J367-, Removing And Installing: Removing

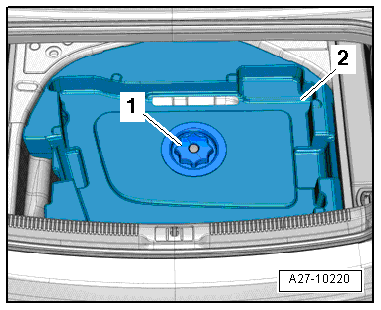

Fig 1: Identifying Nut -1- & Remove Wind Deflector Mount -2-

Courtesy of AUDI OF AMERICA, LLC

-- Turn off the ignition and remove the key.

-- Lift the luggage compartment floor and engage it on the body.

-- Remove the wind deflector from its mount.

-- Remove the nut -1- and remove the wind deflector mount -2-.

-- Remove the tool kit mount.

-- Open the cover -1- over the battery negative terminal.

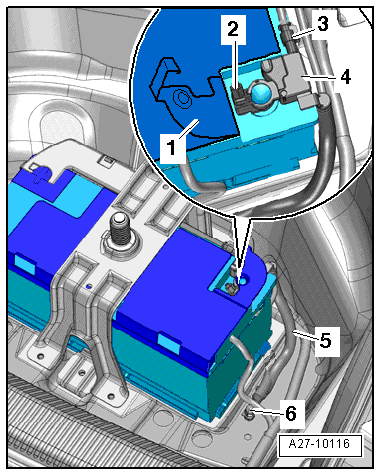

Fig 2: Opening Cover Over Battery Negative Terminal

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the nut several turns and remove the ground cable -2- from the battery terminal.

-- Disconnect the connector -3-.

-- Remove the nut -6- and remove the ground cable -5- with the Battery Monitoring Control Module -J367- -4-.
