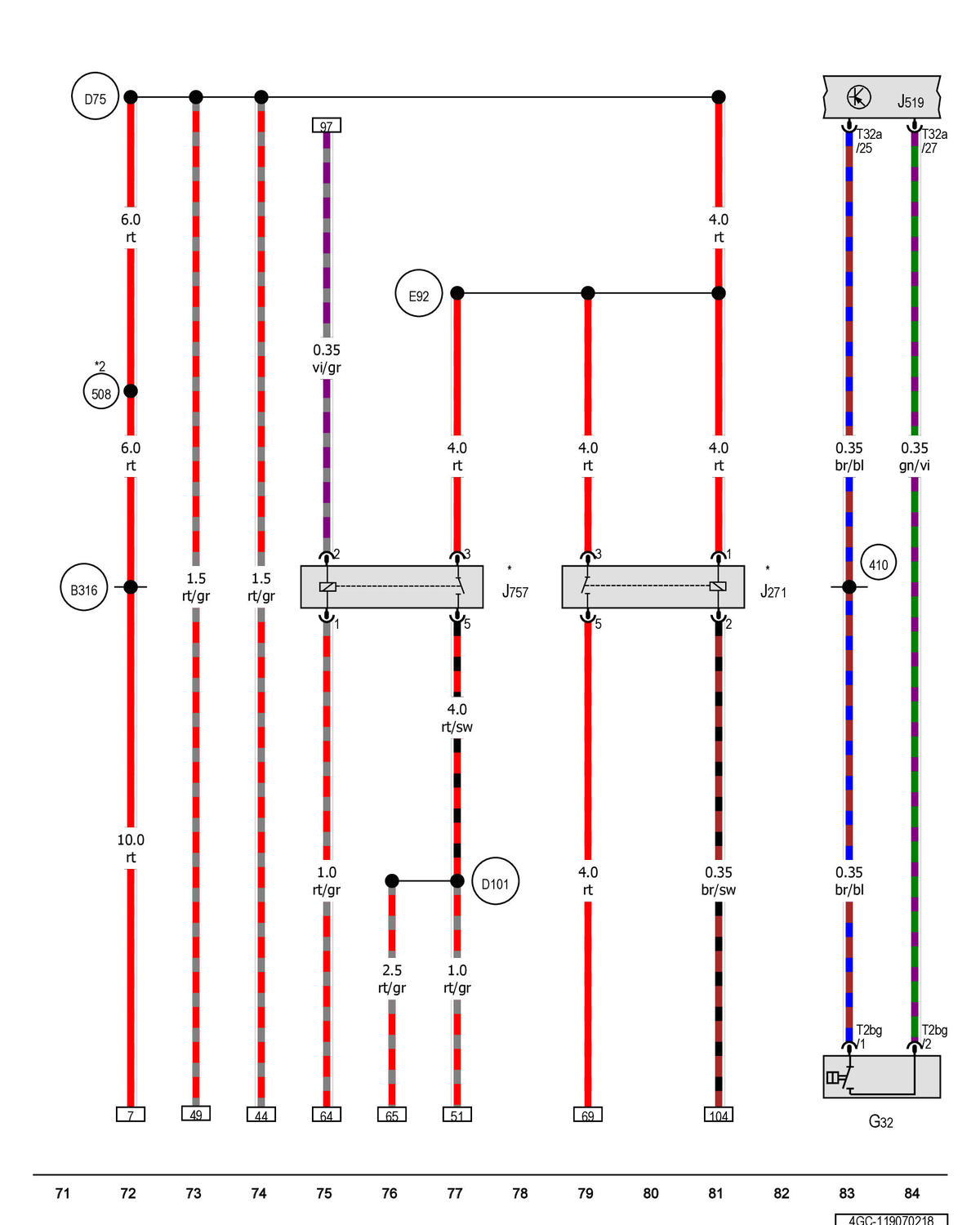

Wiring Diagram CALLOUT (Engine Coolant Level Sensor, MOTRONIC Engine Control Module Power Supply Relay, Vehicle Electrical System Control Module, Engine Component Power Supply Relay)
G32
Engine Coolant Level Sensor
J271
Motronic Engine Control Module Power Supply Relay Type:BT, Slpdok:, Aim:BTJ271
J519
Vehicle Electrical System Control Module Type:BT, Slpdok:, Aim:BTJ519
J757
Engine Component Power Supply Relay Type:BT, Slpdok:, Aim:BTJ757
T2bg
2-Pin Connector
T32a
32-Pin Connector Type:BT, Slpdok:, Aim:BTT32a
Sensor Ground Connection 1 (in Main Wiring Harness)
Terminal 30 Threaded Connection (On E-Box)
Positive Connection 2 (30a) (in Main Wiring Harness)
Positive Connection 2 (30) (in Engine/Motor Compartment Wiring Harness)
Connection 1 (in Engine/Motor Compartment Wiring Harness)
Positive Connection 3 (30) (in Engine/Motor Compartment Wiring Harness)
*
Relay and Fuse Panel in the Plenum Chamber E-Box
*2
Threaded Connection in the Plenum Chamber E-Box
